Engineering Advantages in Welding, Cutting, and Cleaning Automation

---

Executive Summary

The adoption of collaborative robot (cobot) arms in the laser processing industry is accelerating as manufacturers seek automation solutions that balance precision, flexibility, safety, and cost efficiency. Unlike traditional industrial robots, collaborative robots are designed for close human interaction, intuitive programming, and rapid redeployment. When integrated with laser technologies, cobots enable highly efficient robotic laser welding, laser cutting, and laser cleaning processes without the complexity of conventional robotic welding cells.

This whitepaper examines the technical foundations, system architecture, and performance benefits of collaborative robot arms in laser applications, providing engineering decision-makers with a clear framework for evaluating cobot-based laser automation.

---

1. Background: Automation Challenges in the Laser Industry

Laser processing technologies—particularly laser welding, cutting, and cleaning—are valued for their high energy density, precision, and minimal thermal distortion. However, traditional automation approaches using industrial robots present several challenges:

• Complex offline programming and long commissioning cycles
• High safety requirements, including fencing and interlocks
• Limited flexibility in high-mix, low-volume production
• High total cost of ownership (TCO) for small and mid-scale operations

As production models shift toward customization, shorter product lifecycles, and frequent changeovers, manufacturers require robotic systems that are easier to program, safer to operate, and more adaptable. Collaborative robot arms directly address these constraints.

---

2. Core Characteristics of Collaborative Robot Arms

2.1 Human-Robot Collaboration and Safety Architecture

Collaborative robots are equipped with integrated force, torque, and speed monitoring at each joint. These systems enable real-time collision detection and power-and-force limiting (PFL) operation. From an engineering standpoint, this allows cobots to operate without traditional safety cages while maintaining compliance with international safety standards.

For laser applications, this architecture enables hybrid workcells where operators can load parts, inspect welds, or adjust fixtures while the robot remains within a controlled, software-defined safety envelope.

2.2 Lightweight and Compact Mechanical Design

Cobots typically feature lower payloads and reduced mass compared to industrial robots. While this limits extreme heavy-duty applications, it provides significant benefits:

• Easier mechanical integration
• Lower inertia and smoother motion control
• Reduced installation and foundation requirements

For laser welding machines, cleaning heads, and cutting optics—which are generally lightweight—collaborative robots offer sufficient payload capacity without sacrificing precision.

---

3. Programming and Control: A Paradigm Shift

3.1 Programming by Demonstration

One of the most critical advantages for engineering teams is intuitive programming. Collaborative robot arms support hand-guiding and teach-by-demonstration, allowing operators to physically move the robot along the desired path. The robot controller records positional data, tool orientation, and motion parameters.

From a control systems perspective, this approach reduces dependency on proprietary robot languages and offline simulation software. It also enables faster process validation and iteration during commissioning.

3.2 Implications for Process Engineering

For robotic welding automation, simplified programming means:

• Reduced commissioning time
• Faster process optimization
• Easier adaptation to new part geometries

Engineering teams can focus on laser process parameters—power, speed, focal position, and waveform—rather than robot motion complexity.

---

4. Robotic Laser Welding with Collaborative Robots

4.1 System Integration

In a typical robotic laser welding system, the collaborative robot arm is integrated with a fiber laser welding machine, welding head, wire feeder (optional), and cooling system. The robot provides precise path control, while the laser source delivers stable energy output.

Collaborative robots offer repeatability sufficient for most laser welding applications, particularly thin-to-medium thickness materials commonly used in automotive, electronics, and general fabrication.

4.2 Process Advantages

From a metallurgical and thermal standpoint, laser welding offers:

• Narrow weld seams and deep penetration
• Minimal heat-affected zone (HAZ)
• Low distortion and residual stress

When combined with cobot motion accuracy, robotic laser welding delivers consistent weld quality independent of operator skill. This significantly reduces variability and rework rates in production.

---

5. Laser Cutting with Collaborative Robot Arms

Collaborative robots can also be deployed for laser cutting applications, particularly where flexibility and multi-axis motion are required. Compared to fixed gantry systems, cobot-based laser cutting enables:

• Complex 3D cutting paths
• Processing of variable part geometries
• Reduced fixturing requirements

From an engineering standpoint, this approach is well-suited for prototype production, small batches, and custom fabrication, where traditional CNC or gantry systems may be over-engineered.

---

6. Robotic Laser Cleaning Applications

Laser cleaning is increasingly used for surface preparation, oxide removal, rust removal, and pre-weld treatment. When combined with a collaborative robot arm, a robotic cleaning machine can automate surface treatment with high consistency.

Engineering benefits include:

• Precise energy delivery without substrate damage
• Repeatable coverage across complex surfaces
• Elimination of chemical or abrasive consumables

Laser cleaning with cobots is particularly valuable in automated welding cells, where surface condition directly impacts weld quality.

---

7. Comparison with Traditional Industrial Robots

Aspect	Collaborative Robots	Traditional Industrial Robots
Programming	Hand-guiding, intuitive	Code-based, complex
Safety	Built-in, fence-free	External fencing required
Deployment time	Short	Long
Flexibility	High	Moderate
TCO	Lower for SMEs	Higher

For many laser processing tasks, collaborative robots provide sufficient precision and payload capacity while significantly reducing integration complexity.

---

8. Engineering Considerations and Limitations

While collaborative robots offer substantial advantages, engineering teams should also consider limitations:

• Lower maximum payload and speed compared to heavy industrial robots
• Not ideal for extremely high-throughput or heavy welding tasks
• Laser safety (optical radiation) still requires appropriate shielding and interlocks

A hybrid approach—using collaborative robots for flexible laser tasks and industrial robots for heavy-duty operations—is often the optimal strategy.

---

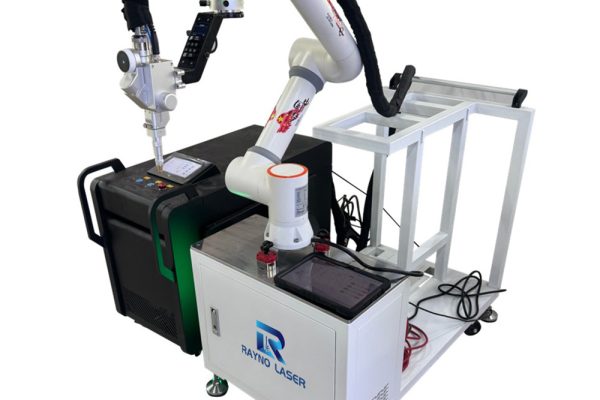

9. Related Product

Collaborative robot arms represent a technically sound and future-ready solution for laser industry automation. By combining intuitive programming, advanced safety architecture, and sufficient precision, cobots enable efficient robotic laser welding, laser cutting, and laser cleaning with reduced complexity and cost.

For engineering decision-makers, collaborative robots offer a practical path to scalable robotic welding systems and laser automation—particularly in environments demanding flexibility, rapid changeovers, and high process quality.
