100W 200W 300W Backpack Pulse Laser Cleaning Machine for Paint Remove
Backpack laser cleaning machines are engineered to meet the demands of mobile cleaning to remove paint, graffiti, weld seams, high-altitude tasks.
- With built-in battery, you can working with it everywhere
- Pulsed laser cleaning, delicate to cleaning metal, woods, bricks, wall, slate without heat impaction.
- 9 different cleaning patterns
FOB Reference Price: Get Latest Price
PRODUCT DESCRIPTION

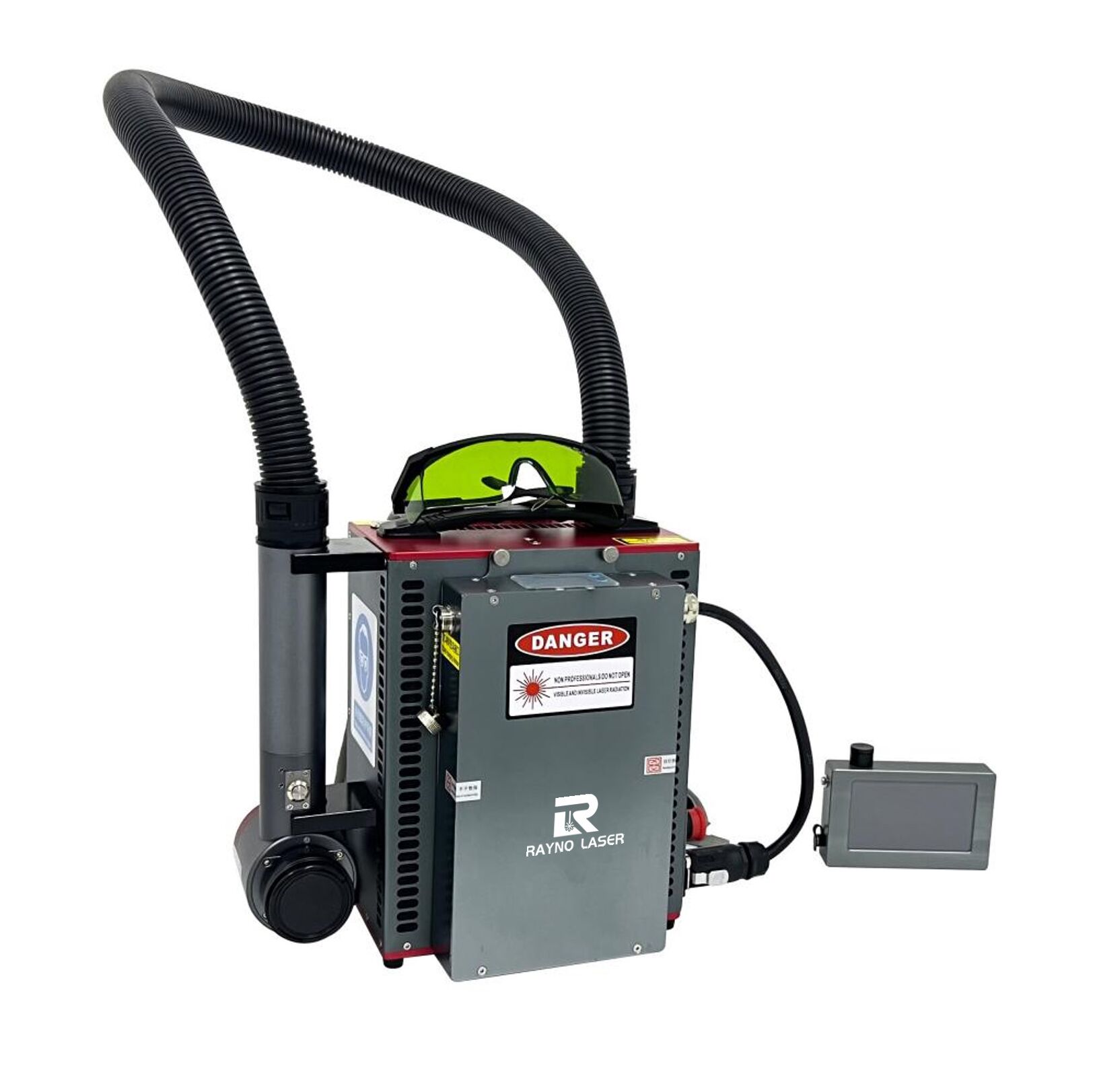

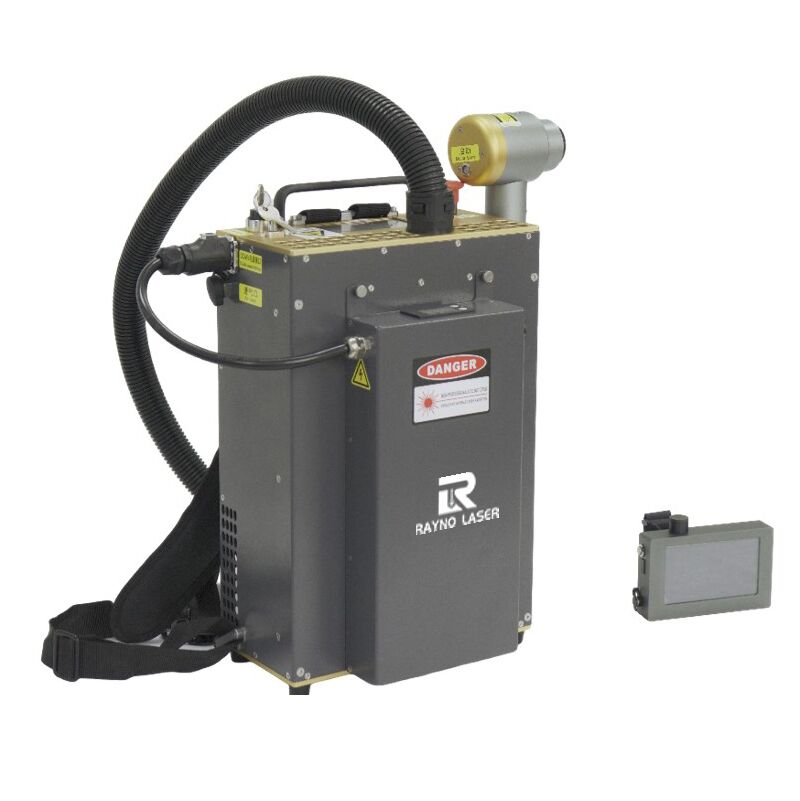

Introducing the RN-HC Series: Portable, Powerful, and Precision-Crafted
Designed for versatility and efficiency, Rayno Laser RN-HC series backpack laser cleaning machines are engineered to meet the demands of modern industrial cleaning. Whether tackling urban graffiti, weld seams, high-altitude tasks, or operations in power-scarce environments, these portable systems deliver unmatched performance. Below are the specifications and advantages of our three models:
Model Specifications
| Parameter | RN-HC100 | RN-HC200 | RN-HC300 |
| Power Supply | AC220V ±10%, 50/60Hz | AC220V ±10%, 50/60Hz | AC220V ±10%, 50/60Hz |
| Battery Option | 100W, 90-minute runtime | 200W, 80-minute runtime | 300W, 60-minute runtime |
| Average Laser Power | 100W | 200W | 300W |
| Laser Type | Pulse Fiber Laser | ||
| Repetition Frequency | 20-200 Hz (adjustable) | 1-3000 Hz (adjustable) | 1-3000 Hz (adjustable) |
| Fiber Length | 1.5m | ||
| Cooling System | Air-cooled | ||
| Scanning Speed | 30,000 mm/s | 12,000 mm/s | 12,000 mm/s |
| Scanning Range | 0-100mm (adjustable) | 0-145mm (adjustable) | 0-145mm (adjustable) |
| Host Dimensions | 213×168×339 mm | 268×191.5×445 mm | 268×191.5×445 mm |
| Host Weight | 8.5kg (without battery) | 12.5kg (without battery) | 13.5kg (without battery) |

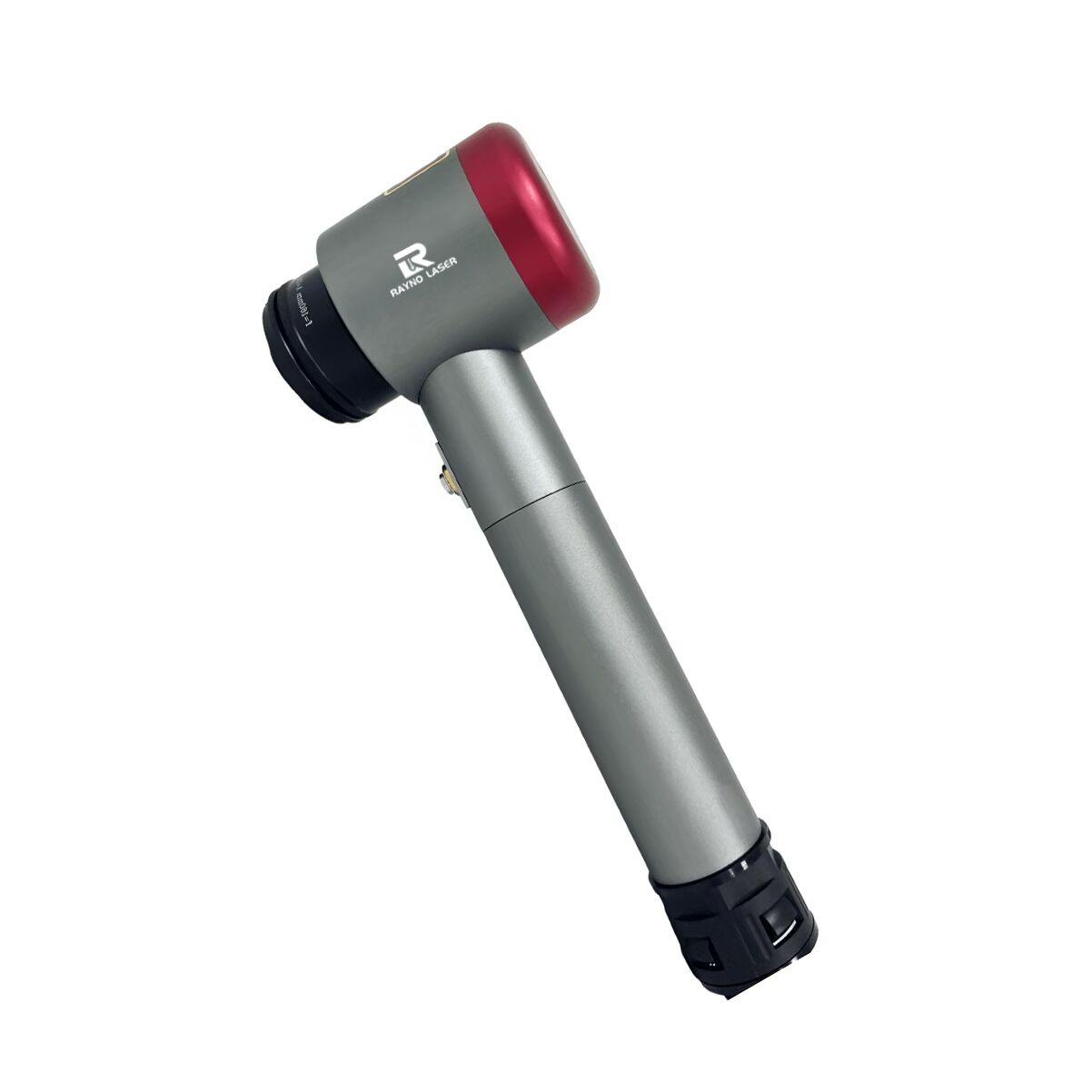

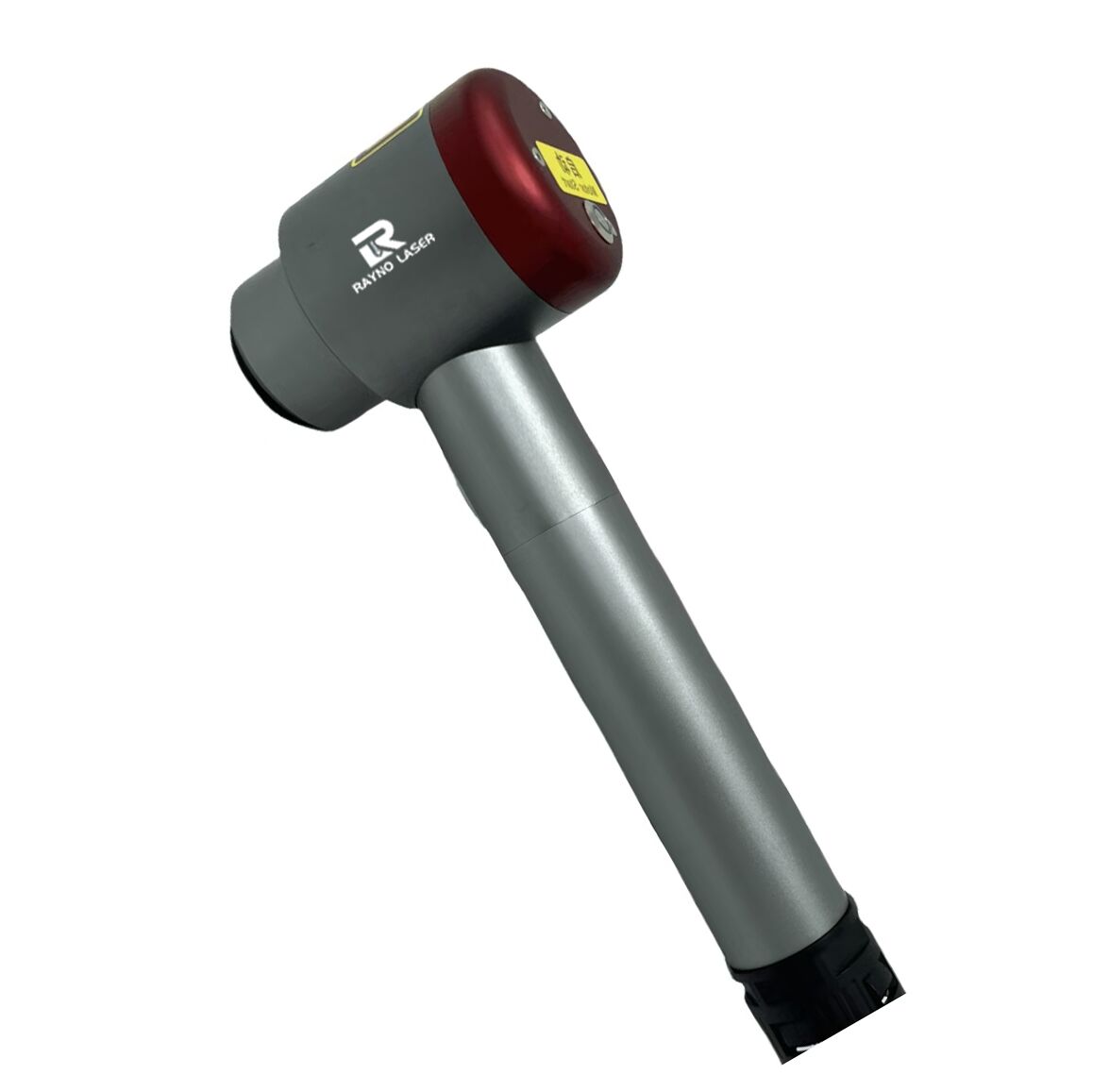

| Cleaning Head Weight | <0.75kg | ||
| Operation Mode | Handheld/Automated | ||
Key Product Advantages
1. Ultimate Portability for Challenging Environments
Backpack Design: Lightweight and ergonomic, ideal for high-altitude work, confined spaces, or remote locations without power access.
Long Battery Life: Optional high-capacity batteries provide up to 90 minutes (RN-HC100) of continuous operation, ensuring uninterrupted cleaning in off-grid areas.
2. Precision and Adaptability
Adjustable Parameters: Customize laser power (100W–300W), repetition frequency, and scanning range (0–145mm) to suit diverse tasks—from delicate graffiti removal to robust weld seam cleaning.
Non-Contact Cleaning: Eliminates surface damage, perfect for restoring historical buildings, machinery, or sensitive electronics.
3. High Efficiency and Durability
Rapid Scanning Speeds: Up to 30,000 mm/s (RN-HC100) ensures quick coverage of large areas.
Air-Cooled System: Maintenance-free operation with no liquid coolant required, reducing downtime.
4. Versatile Applications
Urban Maintenance: Effortlessly remove graffiti, paint, and rust from walls, bridges, and public infrastructure.
Industrial Use: Clean weld seams, molds, and machinery components without abrasives or chemicals.
Specialized Scenarios: Ideal for shipyards, construction sites, and heritage restoration projects.
5. Eco-Friendly and Safe
Zero Pollution: No chemicals, abrasives, or waste residues—complies with global environmental regulations.
Operator Safety: Reduced physical strain with lightweight equipment and automated modes.
Why Choose the RN-HC Series laser cleaner?
Scalability: Three models to match your power and runtime needs.
Cost Savings: Minimal consumables (only electricity/battery) and low maintenance.
Future-Ready Technology: Compatible with automated systems for integration into smart factories.
Applications of back pack pulse laser cleaning machine:
Municipalities managing urban graffiti.
Manufacturing plants requiring precision cleaning.
Service providers working in remote or hazardous environments.
Upgrade Your Cleaning Operations Today
The RN-HC series combines mobility, power, and sustainability to redefine industrial cleaning. Contact us to select the model that best fits your needs and experience the future of laser technology!
Kindly note: All specifications are subject to technical improvements. Custom configurations available upon request.
Multi-mode or single-mode cleaning according to the actual application.
The core of the single-mode laser source is thinner, and the beam energy is more higher than the multi-mode laser source.
TECHNICAL PARAMETERS
Additional information
| Model | RN-HC100, RN-HC200, RN-HC300 |
|---|---|
| Laser Power | 100W, 200W, 300W |
| Power Type | Single-mode laser, Multi-mode laser source |
| Laser Power Adjust Range | 10 ~ 100% |
| Laser-wavelength | 1070+ 10nm |
| Working Voltage | 220±20V,AC,PE,50/60Hz |
| Aiming and Positioning | Red Beam |
| Cooling Method | Air Cooling |
| Cleaning Patterns Available | 9 different types |
VIDEO

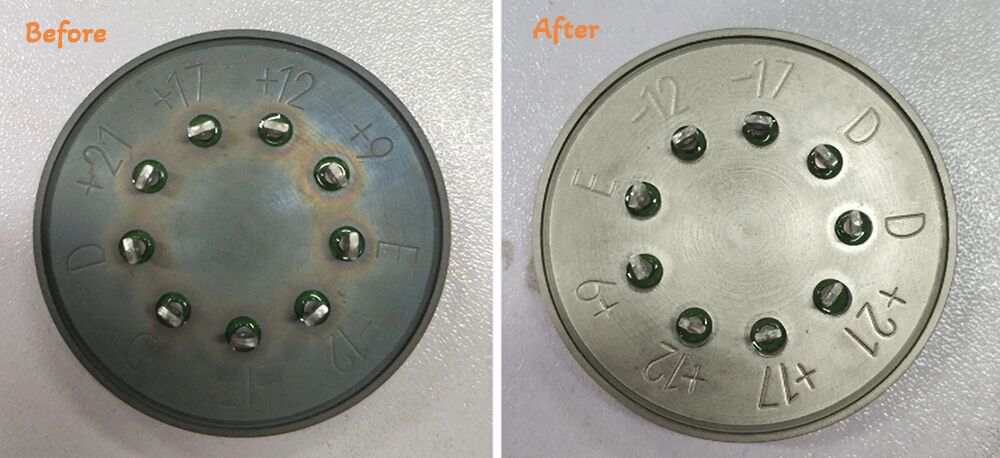

SAMPLE DISPALY
