4 in 1 Laser Gun Laser Head for Welding Cutting and Cleaning

  • 4 in 1 Laser Gun Laser Head
  • Laser welding, laser cleaning, laser cutting and weld bead cleaning
  • Easy control software
  • 24*7 After-sales technical support

FOB Reference Price: Get Latest Price

PRODUCT DESCRIPTION
  1. Functionality:
    • Welding: Precision laser welding for joining various materials.
    • Cutting: Efficient laser cutting capability for precise material removal.
    • Cleaning: Surface cleaning using laser ablation for preparation or finishing.
    • Weld Bead Cleaning: Targeted removal of excess weld material for smoother finishes.
  2. Software:
    • User-Friendly Interface: Easy-to-operate software interface for intuitive control.
    • Data Library: Access to a comprehensive library of welding parameters and settings for different materials and applications.

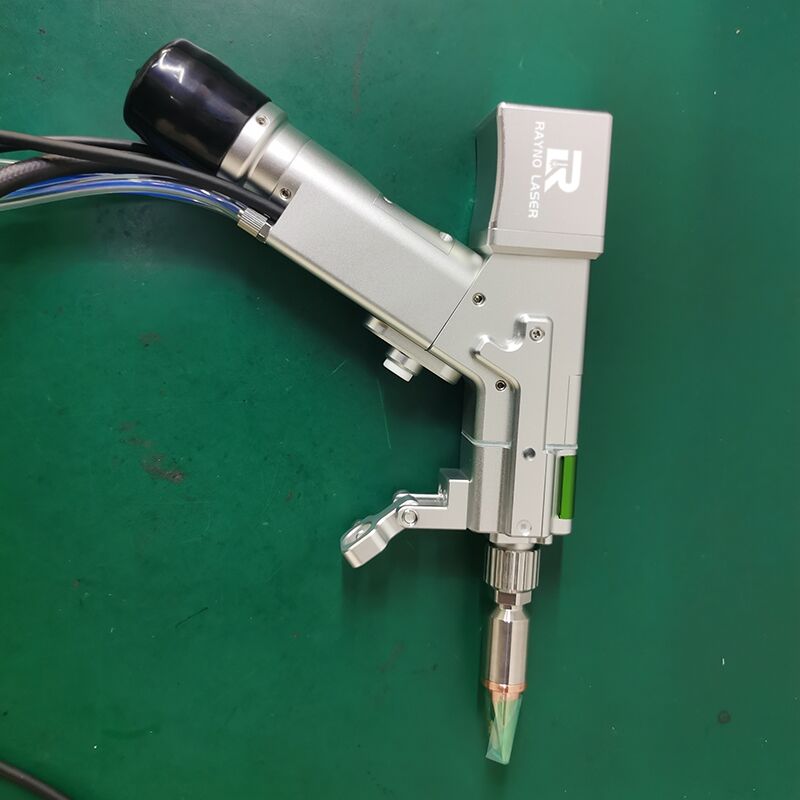

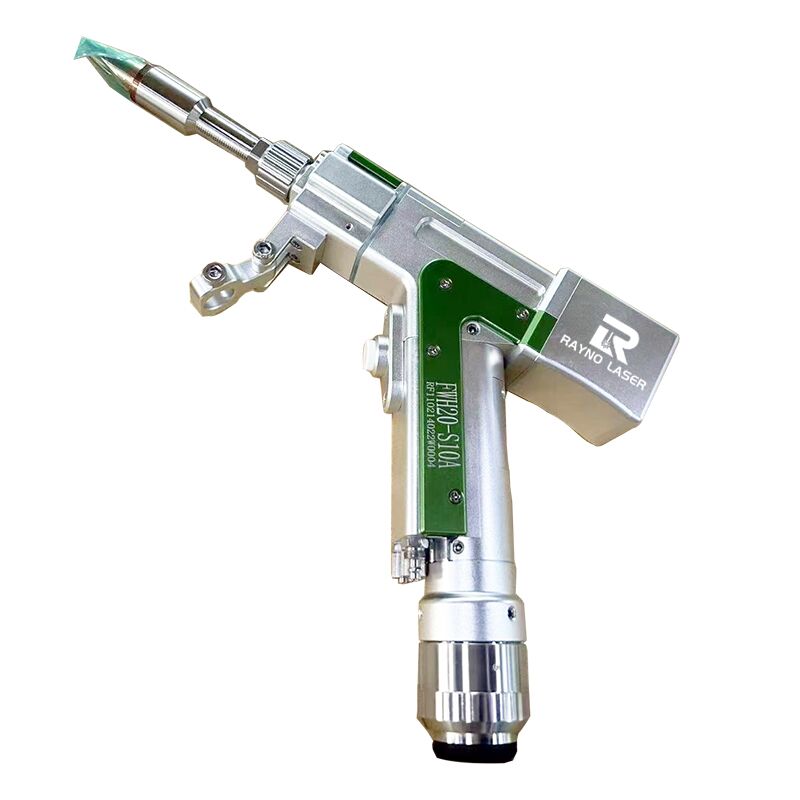

4 in 1 Laser Gun details

  1. Double Protective Lens:
    • Enhanced Safety: Dual protective lenses for added protection against debris and laser emissions.
    • Drawer-Type Design: Convenient design for easy replacement and interchangeability of protective lenses.

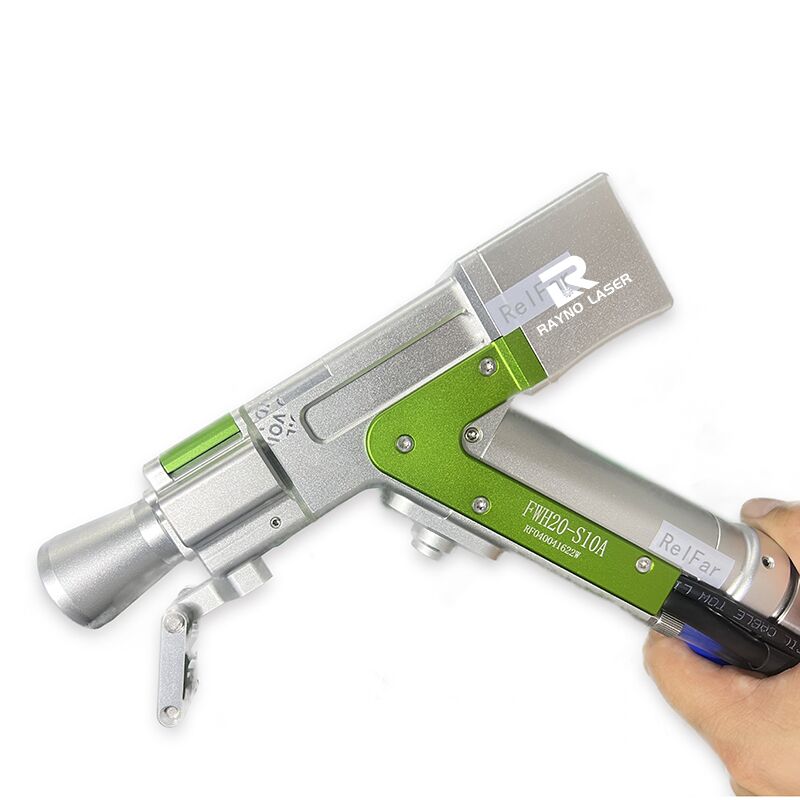

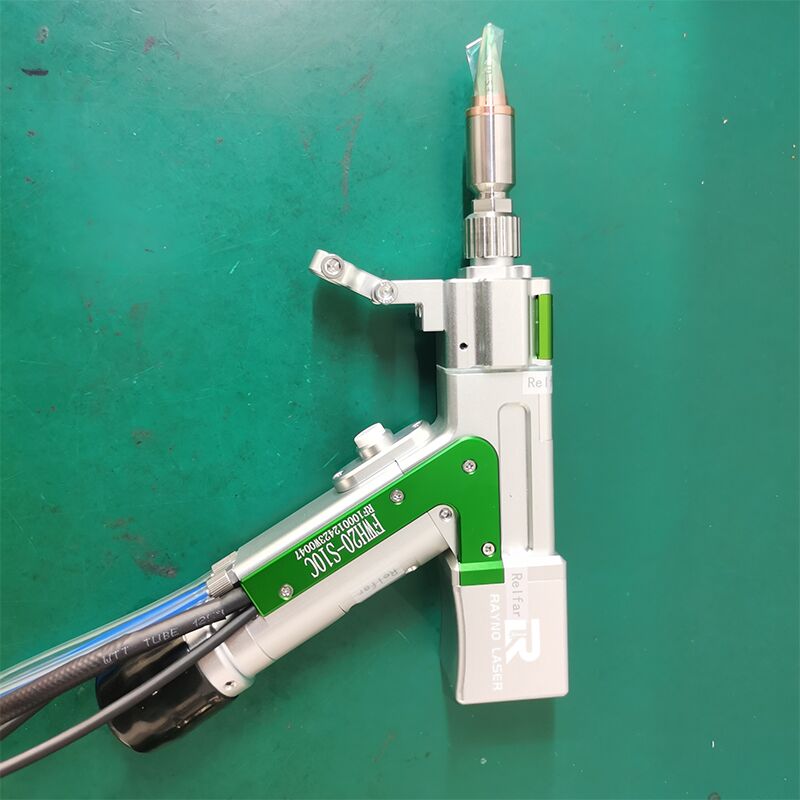

4 in 1 Laser Gun details 2

  1. Wire Feeder Integration:
    • Versatile Wire Feeding: Compatible with single or double wire feeding configurations for various welding requirements.
    • Enhanced Efficiency: Integrated wire feeder streamlines the welding process for improved productivity and consistency.
  2. Packing List
    List
    Serial number Name Number
    1 Intelligent handheld welding head 1PCS
    2 24V power box 1PCS
    3 15V power box 1PCS
    4 Earth clamp assembly 1PCS
    5 Display screen 1PCS
    6 Touch screen 4-core cable-1.5m- black 1PCS
    7 Bluetooth antenna 1PCS
    8 V2 welding system control 1PCS

    4 in 1 Laser Gun packing list



This 4-in-1 handheld laser welding machine gun offers comprehensive features, including versatile functionality, user-friendly software, enhanced safety measures, and efficient wire feeding capabilities, making it suitable for a wide range of welding applications in industries such as manufacturing, automotive, aerospace, and more.

TECHNICAL PARAMETERS

Additional information

Fiber interface

QBH

Wavelength range

1070±20nm

Rated power

≤3000W

Collimating focal length

50mm

Focus length

150mm

Focus adjustment range

-10mm~+10mm

Spot adjustment range

0~5mm

Auxiliary gas pressure

≤1Mpa

Cooling Method

Water Cooling

Weight

0.72Kg

VIDEO
SAMPLE DISPALY

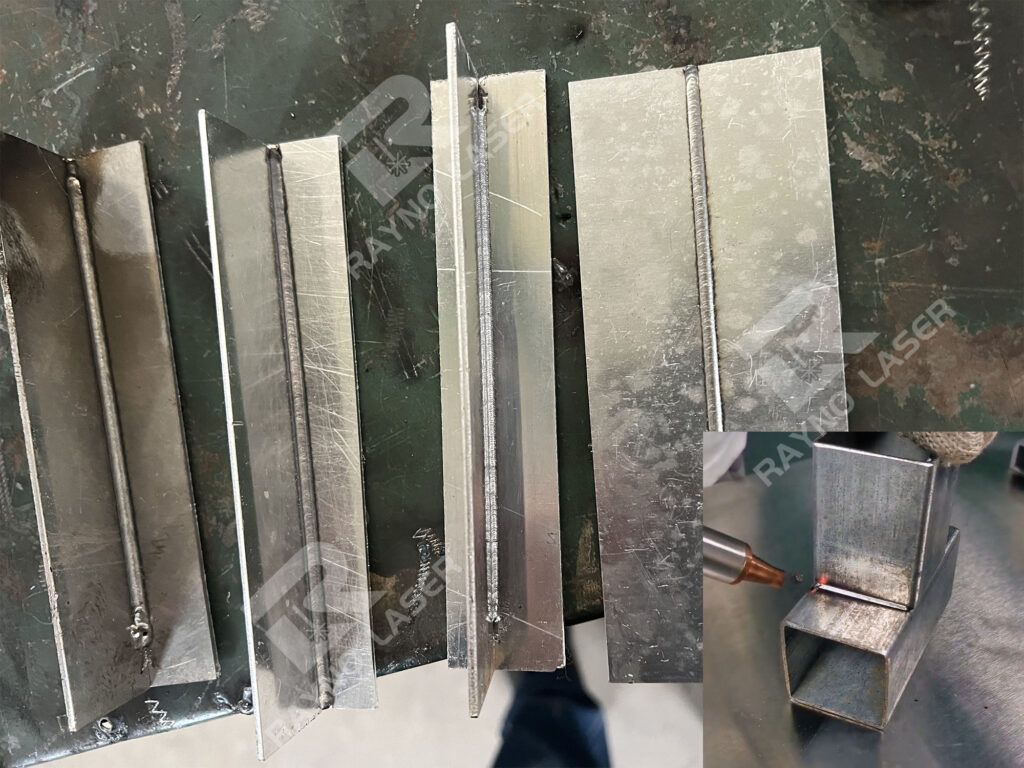

4 in 1 gun Welding Samples
