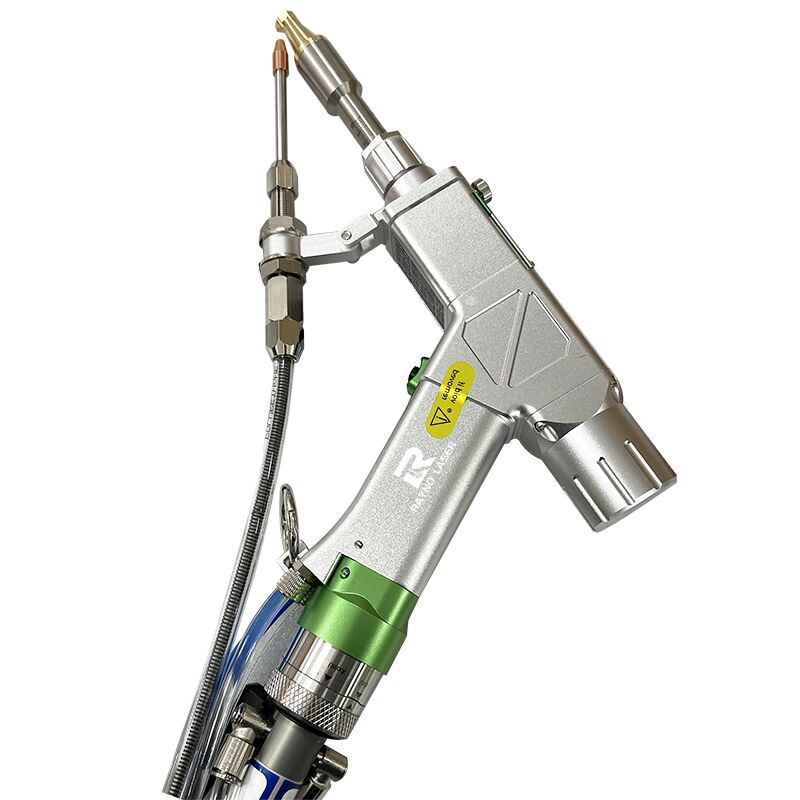

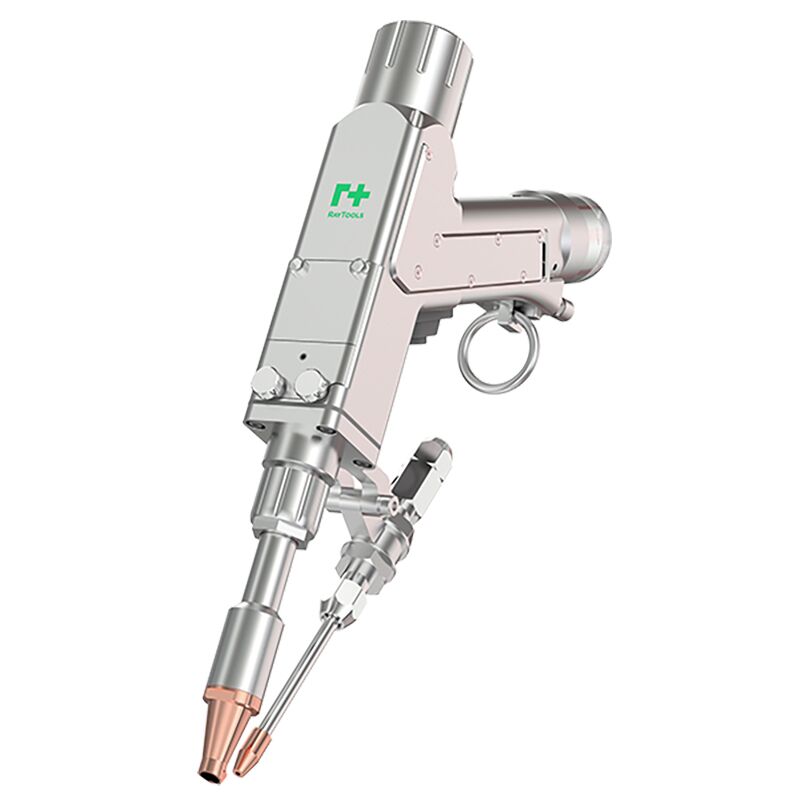

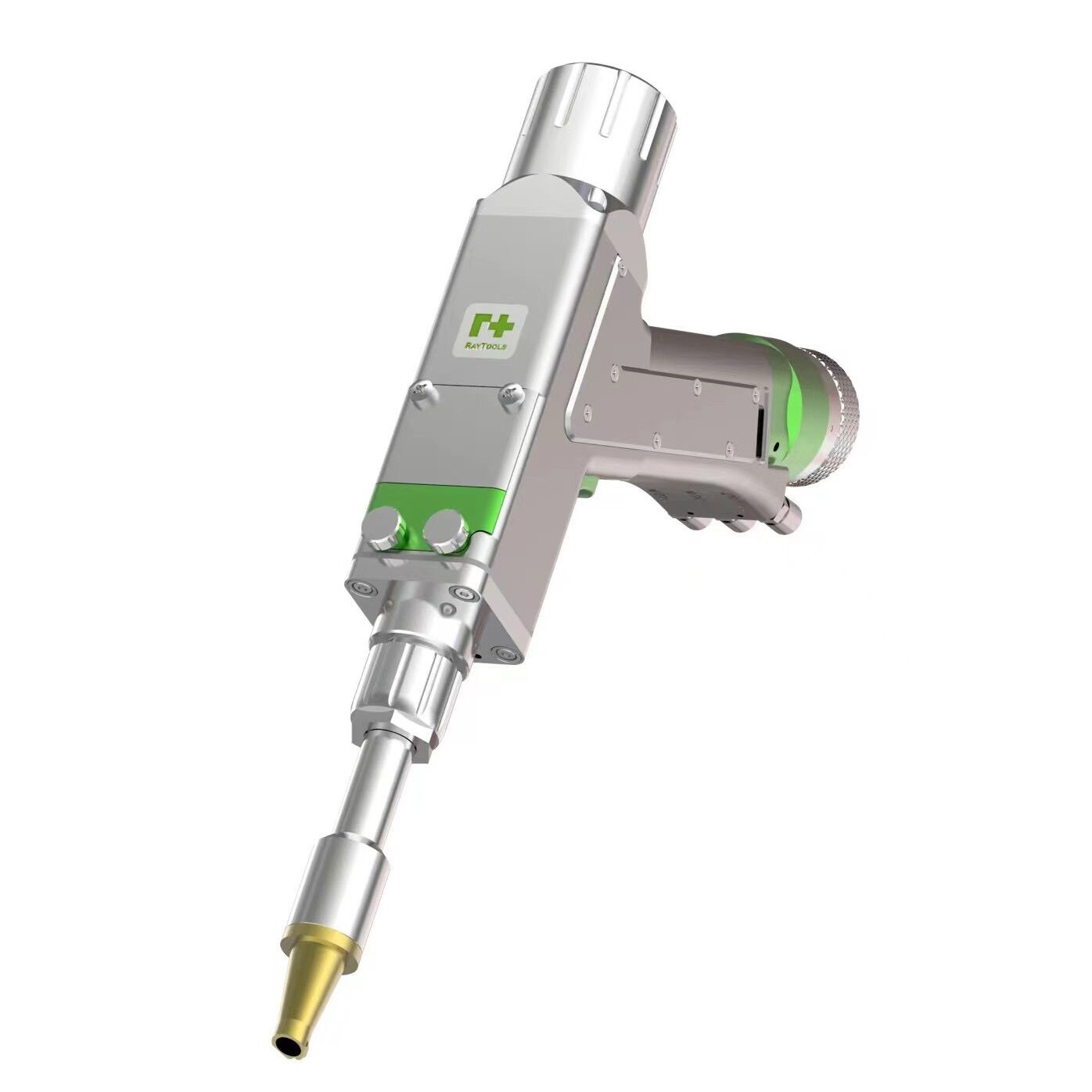

Raytools 4-in-1 Laser Welding Gun. Famous brand and ergonomic, it supports continuous and fish scale spot welding. With multiple nozzles for welding, cutting, and cleaning, optional dual wire feeding, it’s the ultimate versatile handheld laser welding machine for various applications.
1. Lightweight and Ergonomic Design The single galvanometer handheld welding head is incredibly lightweight and compact. Its ergonomic design ensures ease of operation, reducing fatigue during extended use. | |
2. Superior Welding Process Our laser welding gun supports continuous welding and fish scale spot welding, adaptable to various welding methods. This flexibility makes it ideal for a range of materials and applications. | |
3. Optimized Design for Enhanced Performance The Raytools laser gun is optimized for peak performance, ensuring consistent, high-quality welds every time. Drawer-type protective lens, easy to replace. This reliability is crucial for demanding industrial applications. | |
4. All-in-One Functionality Equipped with multiple nozzle options, the 4-in-1 laser gun can handle welding, cutting, weld cleaning, and remote cleaning. This multifunctional capability makes it a versatile tool for any workshop. | |
5. Optional Double Wire Feeding Enhance your welding efficiency with the optional dual wire feeders and dual wire feed components. This feature is perfect for welding thick plates and wide weld seams, providing robust and durable results. |
Name |
Raytools Laser Gun for handheld laser welding machine | ||
Model | 4 in 1 laser gun | ||
Fiber interface | QBH | ||
Wavelength scope | 1,070±20nm | ||
Rated power | ≦2000W, ≦3000W | ||
With Wire Feeder | Yes, Single or double wire feeder | ||
Focus focal length | 150mm | ||
Regulating scope of light spot | 0~5mm | ||
Auxiliary pressure | ≤1Mpa | ||
Weight |
0.9Kg |
The Raytools handheld laser welding machine stands out for its innovative features and user-friendly design. Whether you’re working on intricate jewelry pieces, heavy-duty industrial projects, or precision electronics, this laser welding gun delivers exceptional performance.
Fiber interface | QBH |
---|---|
Wavelength range | 1070±20nm |
Rated power | ≤2000W, ≤3000W |
Collimating focal length | F60mm |
Focus length | 150mm |
Focus adjustment range | -10mm~+10mm |
Spot adjustment range | 0~5mm |
Cooling Method | Water Cooling |
Wire diameters support | 0.8mm, 1.0mm, 1.2mm, 1.6mm |
Weight | 0.9KG |
Get additional product information or technical support. Our team is always available to provide you with the necessary guidance and solutions.
