Efficient, Non-Contact, and Eco-Friendly Cleaning Solution

The Rayno Laser RN-HC Series Pulsed Laser Cleaning Machine is a state-of-the-art solution for industrial surface treatment. With power options of 300W, 500W, and 1000W, this machine offers precise, high-speed, and non-damaging cleaning across a variety of materials. It effectively removes rust, paint, oil, coatings, and oxidation layers while maintaining the integrity of the base material.

Unlike traditional cleaning methods, laser cleaning is chemical-free, consumable-free, and environmentally friendly. Its handheld operation makes it versatile and easy to use for a wide range of industrial applications.

---

Key Features & Benefits

1. Multiple Power Options for Different Needs

• RN-HC300 (300W) – Suitable for light-duty cleaning with a scanning range up to 145mm.
• RN-HC500 (500W) – A balance between power and precision, with a scanning range up to 160mm.
• RN-HC1000 (1000W) – High-power cleaning for deep rust and tough contaminants, with a scanning range up to 250mm.

2. Precision Cleaning Without Damage

• Non-contact laser cleaning ensures zero damage to the substrate.
• Adjustable power levels (0-100%) for different cleaning intensities.
• Focal length options: 300W (210mm), 500W (254mm), 1000W (300mm), with customizable focal lengths for enhanced flexibility.

3. High Efficiency & Speed

• Pulsed laser technology with a pulse width range of 2~50ns for effective contaminant removal.
• Modulation frequency between 1-4000kHz, ensuring precise and efficient cleaning.
• Single pulse energy of 15mJ~50mJ for superior cleaning performance.

4. Easy Operation & Portability

• Handheld design allows easy maneuvering for complex surfaces.

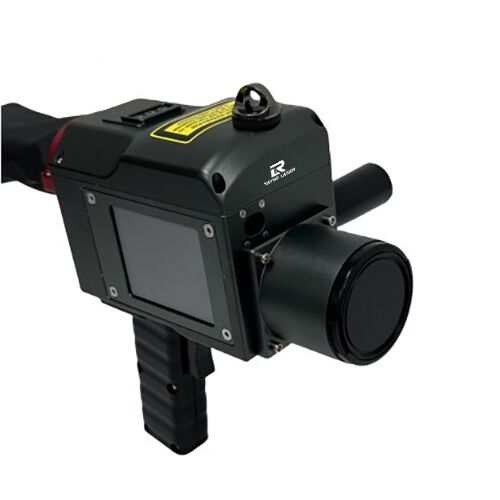

• Lightweight cleaning head:
  • RN-HC300: <1.5kg
  • RN-HC500: <1.5kg
  • RN-HC1000: <3kg
• Ergonomic build reduces operator fatigue, making it ideal for extended use.

5. No Consumables & Low Maintenance

• Water cooling system ensures stable performance.
• No need for chemicals, abrasives, or dry ice—reduces operating costs.
• Stable laser system with minimal maintenance requirements.

6. Environmentally Friendly & Safe

• No chemical waste, dust, or secondary pollution.
• Ultra-low noise operation and low heat deformation for a safer working environment.
• Ultrasonic frequency ≤300Hz for high-precision cleaning.

7. 9 Cleaning Modes for Versatile Applications

The laser cleaning machine supports 9 different cleaning modes, which can be easily switched through the interface scan mode option to adapt to different cleaning needs:

1. Straight Line Mode – Ideal for uniform cleaning of large areas.
2. Rectangle Mode 1 – Precise cleaning for standard rectangular areas.
3. Rectangle Mode 2 – Alternative rectangular scanning for improved coverage.
4. Circle Mode – Efficient for circular contamination removal.
5. Sine Mode – Perfect for curved or irregular surfaces.
6. Spiral Mode – Ensures even contaminant removal across the surface.
7. Free Mode – Allows flexible, manual adjustments for custom cleaning paths.
8. Ring Mode – Optimized for ring-shaped surfaces.
9. Rotation Mode – Enhances cleaning for rotating or cylindrical objects.

Users can easily switch between these modes by clicking on the scan mode option on the interface, allowing for seamless transitions based on the cleaning task.

---

Technical Specifications

Category	RN-HC300 (300W)	RN-HC500 (500W)	RN-HC1000 (1000W)
Power Supply	Single-phase 220V ±10%, 50/60Hz AC
Host Power	<4000W	<4000W	<6000W
Operating Temp	0°C – 40°C
Humidity	≤80%
Cooling Method	Water Cooling
Light Cable Length	5m	10m	10m
Scanning Range	145mm	160mm	250mm
Focal Length	210mm (Optional: 160/210/330/420mm)	254mm (Optional: 160/210/330/420mm)	300mm (Optional: 160/210/250/500/600mm)

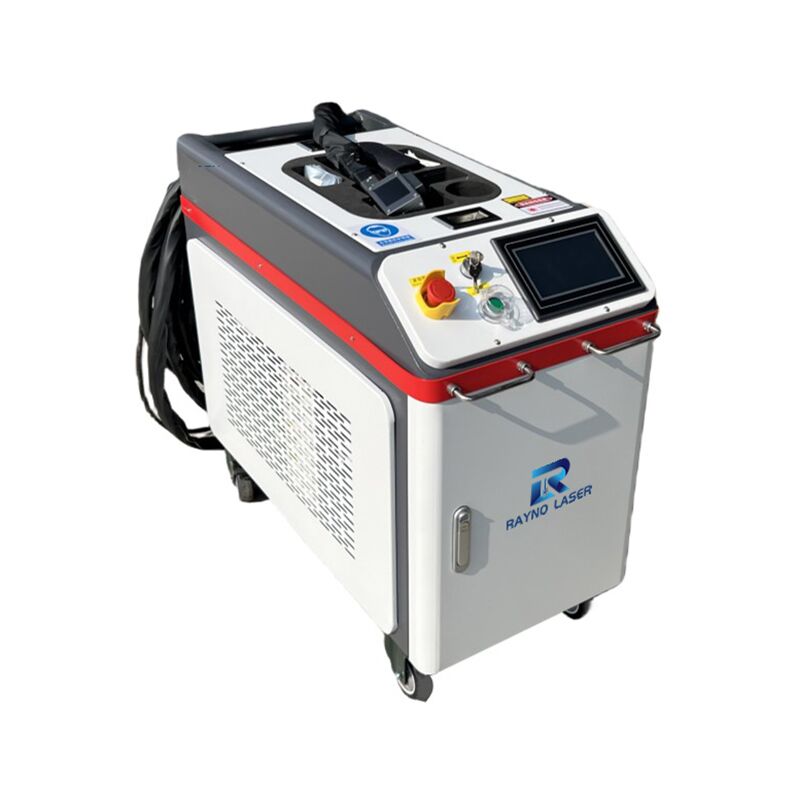

Host Size (LxWxH)	982mm × 458mm × 791mm
Package Size	1200mm × 650mm × 1050mm
Net Weight	≈135kg
Gross Weight	≈165kg
Cleaning Head Weight	<1.5kg	<1.5kg	<3kg
Operation Mode	Handheld Operation

---

Applications Across Multiple Industries

• Automotive & Machinery – Removes rust, oil, and coatings from engine parts and tools.

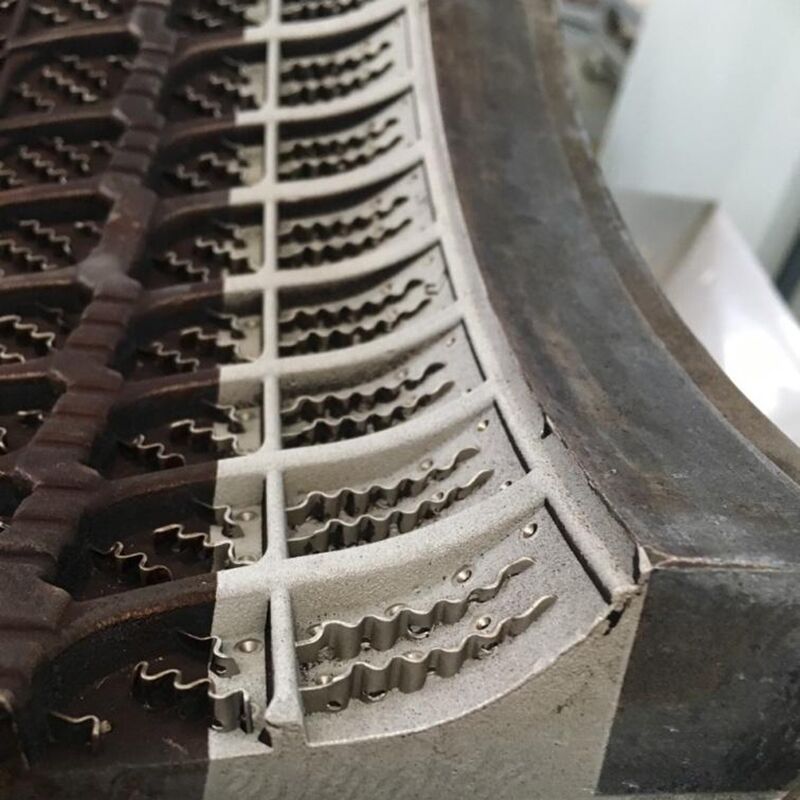

• Mold Cleaning – Ideal for injection molds, blow molds, and tire molds.
• Shipbuilding & Marine – Cleans paint, corrosion, and marine growth.
• Industrial Equipment – Restores heavy machinery surfaces.
• Rail & Infrastructure – Maintains clean surfaces for safe operation.
• Environmental & Public Facilities – A green and efficient cleaning solution.

---

Why Choose Rayno Laser?

• Industry-Leading Technology – Advanced pulsed laser technology for effective cleaning.
• Cost-Effective – No consumables, low maintenance, and long lifespan.
• User-Friendly – Simple operation with handheld or automated integration.
• Customizable Solutions – Various focal lengths and power options to suit your needs.

---

Get more info of RN-HC Series Today!

Upgrade to a faster, safer, and eco-friendly cleaning method. Contact us today to learn more about how the Rayno Laser 300W, 500W, and 1000W Pulsed Laser Cleaning Machines can benefit your business.
