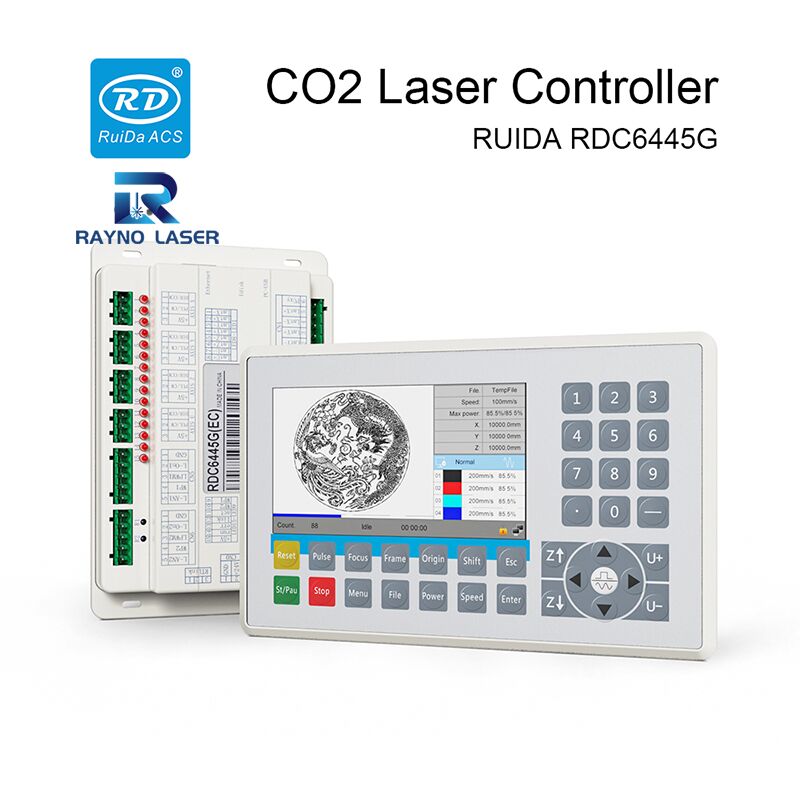

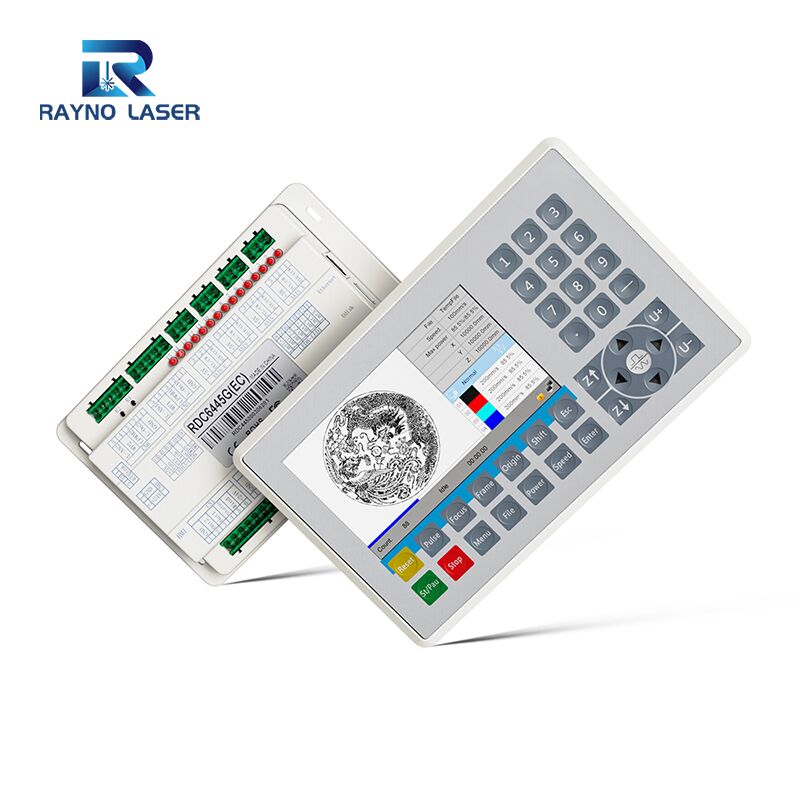

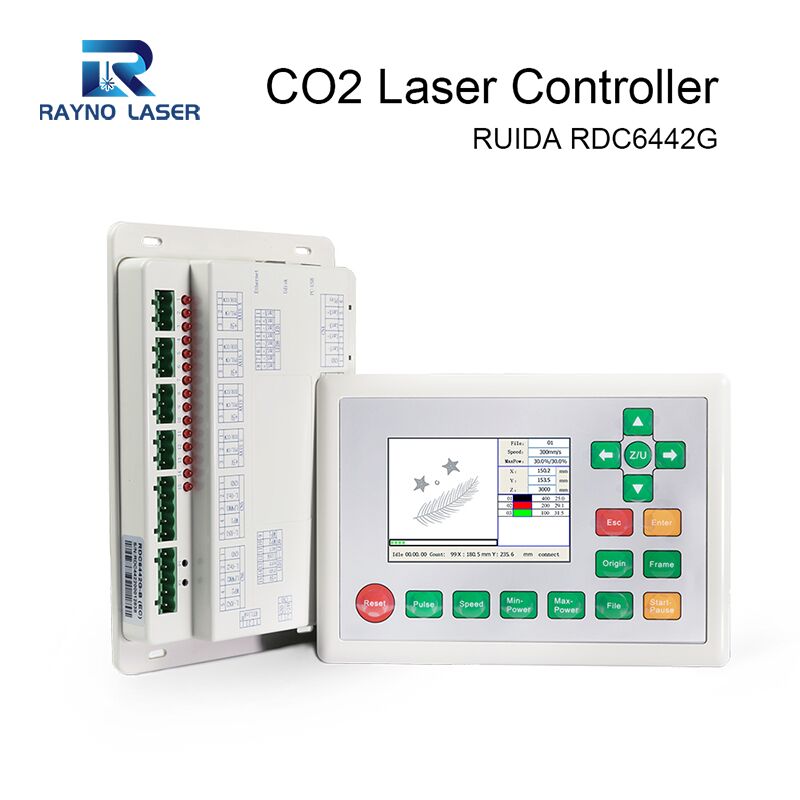

Ruida RDC6445G/RDC6442G Features

• Works independently, with 128M onboard memory.
• Supports USB/Ethernet communication and U disk.
• Application software: RDWorksV8. AutoCAD, CorelDraw and Al plug-in software.
• Supports 4-axis motion control and 2-channels laser control.
• Support panel modification of manufacturer/user parameters,
• Supports manual point/continuous switching, autofocus and docking point setting functions
• Y-axis and U-axis feed simultaneously.
• Supports fixed single and double-head cutting, double-head shifting processing, and ultra-wide cutting processing

• Working standalone,128M memory on board.
• Support USB/Ethernet communication and U disk.
• Support RDWorksV8 operation, AutoCAD, CorelDraw and Al plug-in
• Supports 4 axes, dual laser interface and multi-channel general lO input and output
• 3.5″color screen, rich craftsmanship, digital keys.Support resume Laser cutting after power failure.
• Support working hours preview, accurate to the millisecond.
• Support to modify the processing parameters of the layer from panel.
• The processing path, coordinate points and progress bar real-time display.

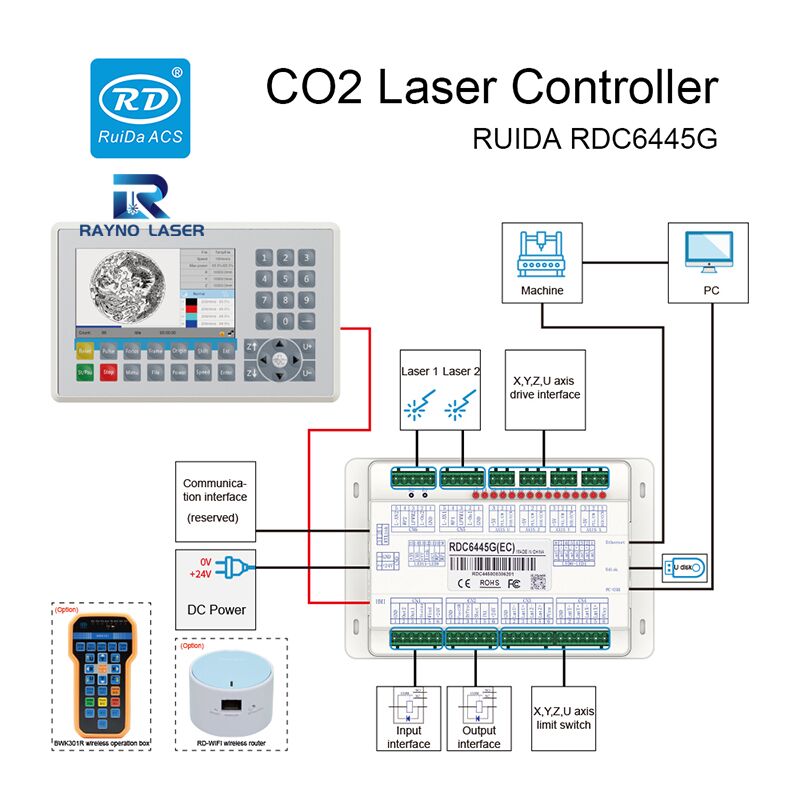

RDC6445G Interface

RDC6445G Dimensions

Multiple languages

RDC6445G Support English, Japanese, German, Russian, Spanish, Portuguese, Korean, French, simplified Chinese, traditional Chinese and other 16 languages.

Software RDworks V8(free)

RUIDA RDC6445G Support PLT,DXF,Al,DST and other file formats import, display and edit functions, support image file importand processing.

Ruida RDC6445G Packing List

Ruida RDC6442G Packing List

Ruida RDC6445G/RDC6442G Certifications

All products are CE, RoHS and FCC certified and comply with safety production standards.
