Main Features

The RUIDA RDV6445G/RDV6442G Vision Laser Controller is a state-of-the-art solution designed to enhance the capabilities of CO2 laser cutting systems, particularly for non-metal materials. With its advanced features and user-friendly design, this controller ensures precise and efficient operation for various applications, including leather, fabric, wood, acrylic, signage, and 3C products.

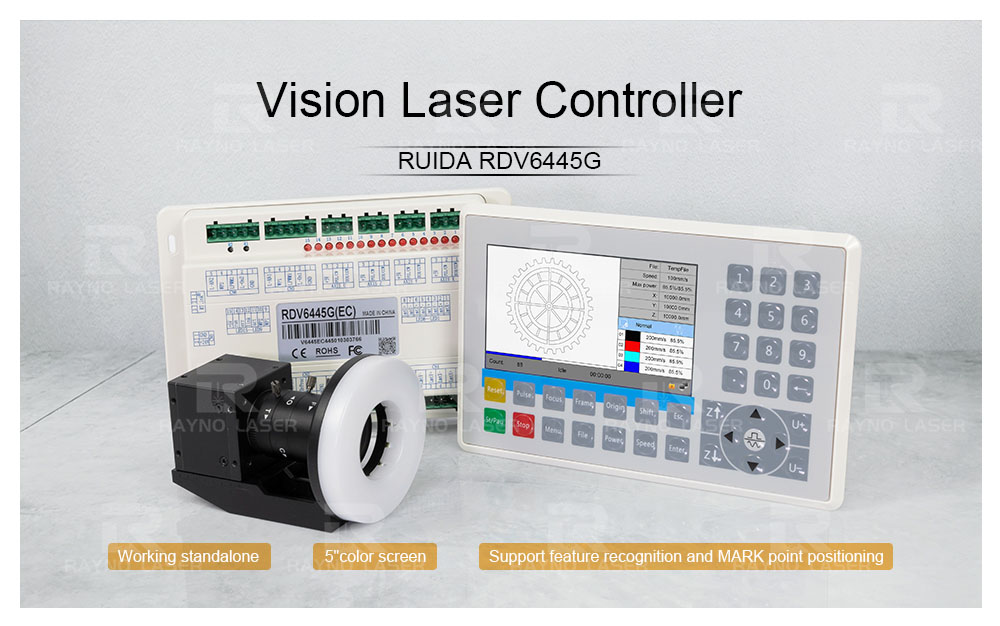

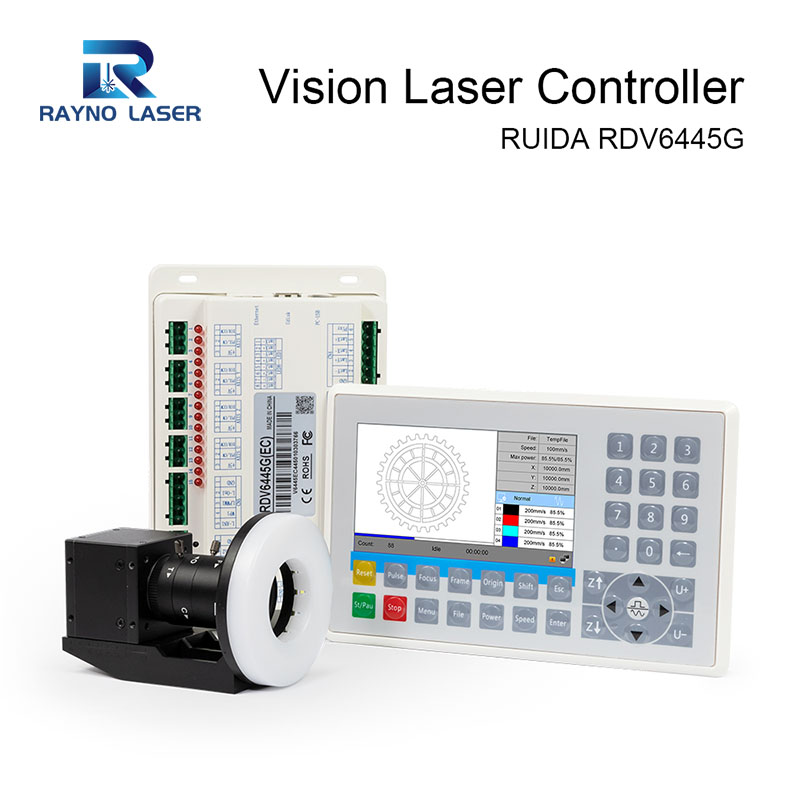

RUIDA RDV6445G Vision Laser Controller Features

1. Advanced Control Interface
5″ Color Screen: The controller features a vibrant 5-inch color screen that provides a clear and intuitive interface for users. The digital keys further enhance ease of use, making it simple to navigate and operate.
Rich Craftsmanship: Designed with meticulous attention to detail, the RDV6445G combines functionality with aesthetic appeal, ensuring a seamless user experience.

2. Standalone Operation and Memory
Standalone Functionality: The RDV6445G can operate independently without the need for a constant computer connection, thanks to its built-in 128M memory. This allows for uninterrupted processing and increased reliability.

3. Versatile Communication Options
Multiple Communication Support: The controller supports USB, Ethernet communication, and U disk, offering flexibility in how data is transferred and managed. This makes it easy to integrate with various systems and devices.

4. Customization and Control
Parameter Modification: Users can easily modify manufacturer and user parameters directly from the panel. This feature allows for on-the-fly adjustments and fine-tuning to meet specific project requirements.

5. Comprehensive Motion and Laser Control
4 Axes Motion Control: The RDV6445G supports 4-axis motion control, allowing for complex and precise movements. Additionally, it offers control over 2 laser channels, enhancing versatility and capability.
Manual and Automatic Functions: The controller supports manual point/continuous switch, automatic focus, and docking point setting functions, providing both manual and automated control options for various tasks.

6. Synchronized Axis Feeding
Y Axis and U Axis Synchronization: The Y axis and U axis can feed synchronously, ensuring smooth and coordinated movements, which is essential for maintaining accuracy in large projects.

7. Advanced Processing Capabilities
Large-Breadth Vision: The RDV6445G supports large-breadth vision processing, making it ideal for extensive projects.
Mark Point Vision Cutting: This feature allows for precise cutting using visual markers, enhancing accuracy.
Projection Cutting: Supports projection cutting, providing a versatile tool for intricate and detailed work.

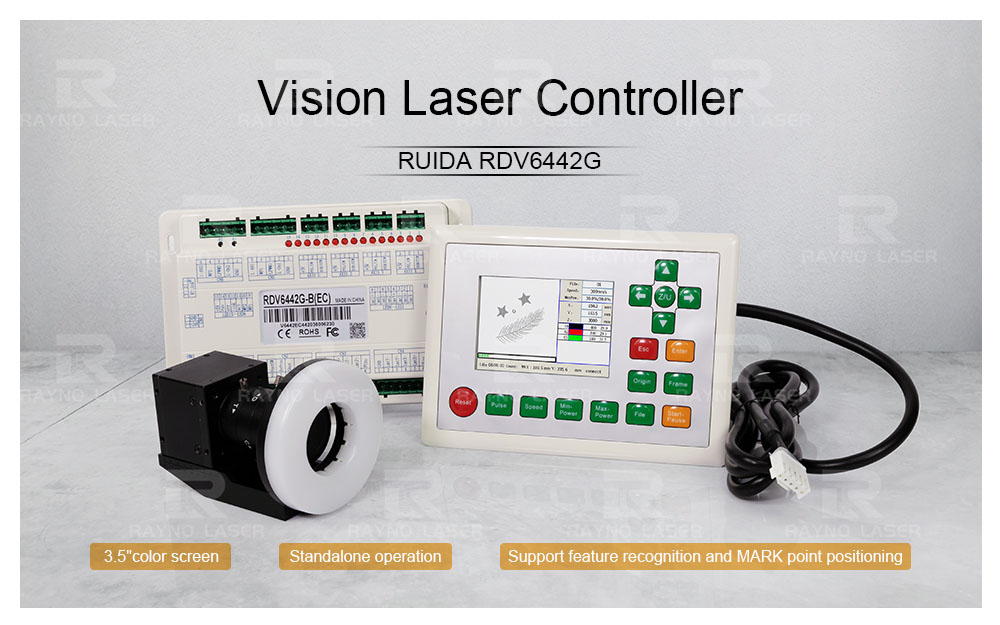

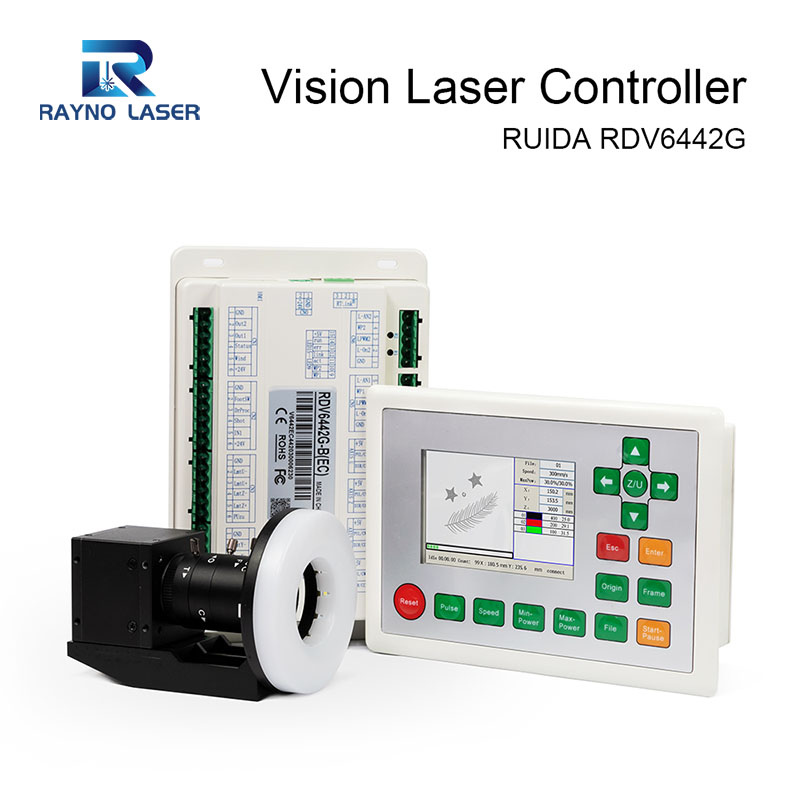

RUIDA RDV6442G  Features

1. 3.5″color screen, rich craftsmanship, digital keys.
2. Working standalone,128M memory onboard.
3. Support USB/Ethernet communication and U disk.
4. Supports 4 axes, dual laser interface and multi-channel general lO input and output.
5. Support resume Laser cutting after power failure.
6. Support working hours preview, accurate to the millisecond.
7. Support to modify the processing parameters of the layer from panel.
8. The processing path, coordinate points and progress bar real-time display.

Applications of the RDV6445G/RDV6442G Vision Laser Controller

The RUIDA RDV6445G/RDV6442G Vision Laser Controller is designed to meet the demanding needs of various non-metal cutting applications. Here are some of the primary areas where this laser controller excels:

1. Textile and Apparel
Fabric Cutting: The large-breadth vision processing makes it suitable for cutting large pieces of fabric, ensuring accuracy and efficiency.
Leather Processing: Ideal for cutting and engraving leather for apparel, accessories, and other applications.

2. Signage and Advertising
Custom Signage: The advanced control and vision capabilities make it perfect for creating custom signage with intricate designs.
Advertising Displays: Ensures high-quality cutting and engraving for advertising displays, enhancing visual appeal and durability.

3. Arts and Crafts
Wood and Acrylic Projects: Perfect for cutting and engraving wood and acrylic materials, allowing for detailed and creative designs in arts and crafts.
Decorative Items: Ideal for producing custom decorative items with precision and high-quality finishes.

4. 3C (Computer, Communication, Consumer Electronics) Products**
Component Manufacturing: Suitable for cutting and engraving components for 3C products, ensuring precision and consistency.

The RUIDA RDV6445G Vision Laser Controller is a powerful and versatile tool that brings advanced control and precision to CO2 laser cutting systems. Its rich feature set, including a 5″ color screen, standalone operation, versatile communication options, and advanced processing capabilities, make it an essential component for any industry relying on precise and efficient laser cutting and engraving of non-metal materials.

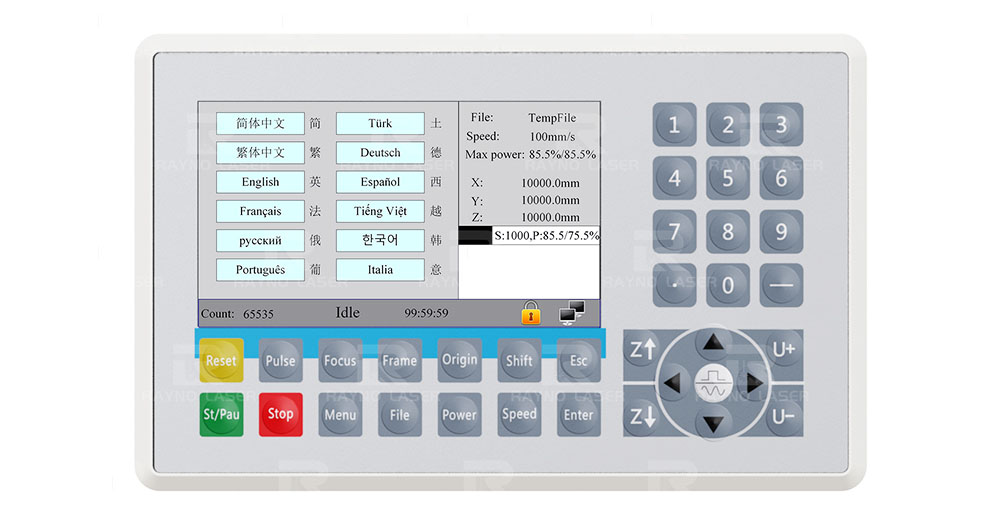

Language support

Both RUIDA RDV6445G and RUIDA RDV6442G support Multiple languages: simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages.

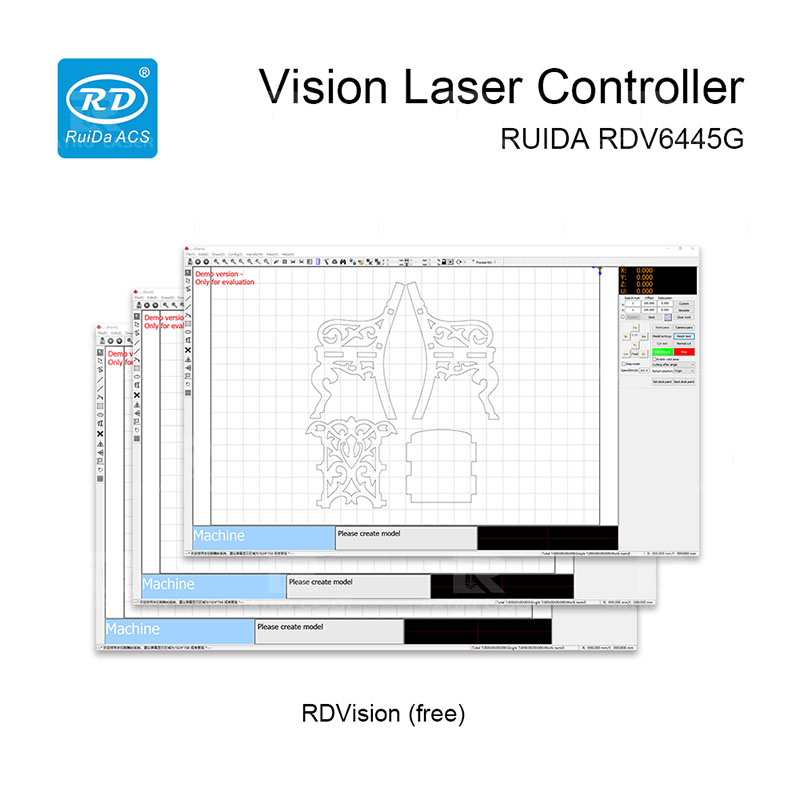

Software support

The software of RDVision was combined with image processing algorithms for feature recognition to complete the cutting work by manually block out the cutting contour.

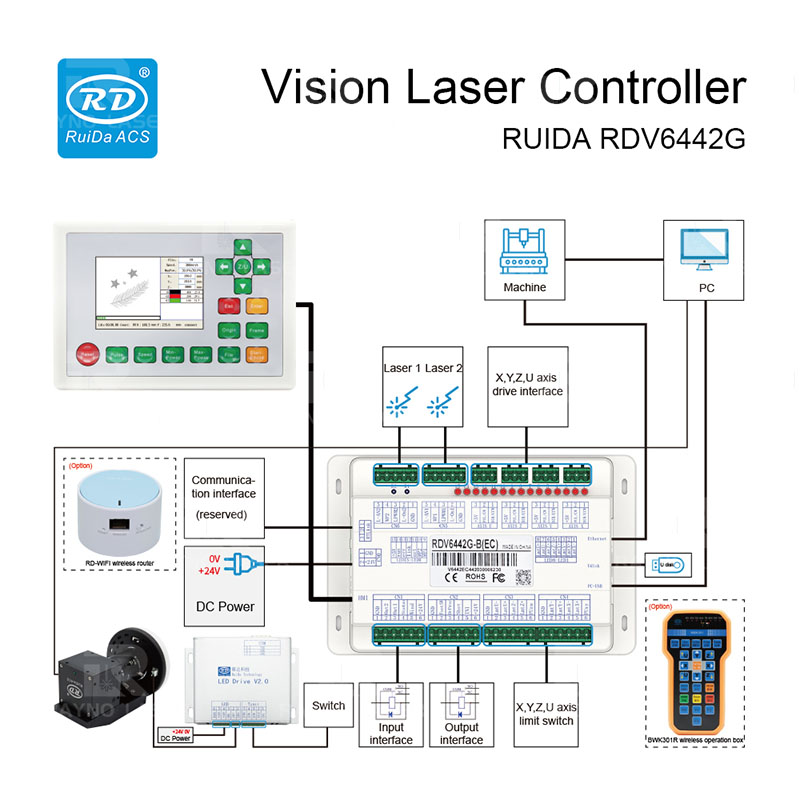

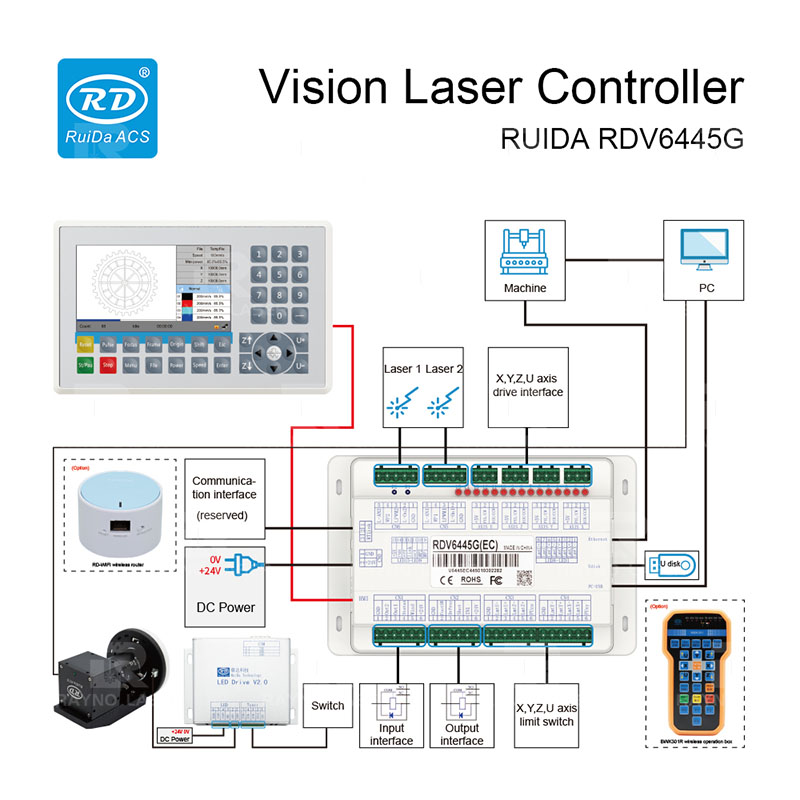

Wiring Diagram

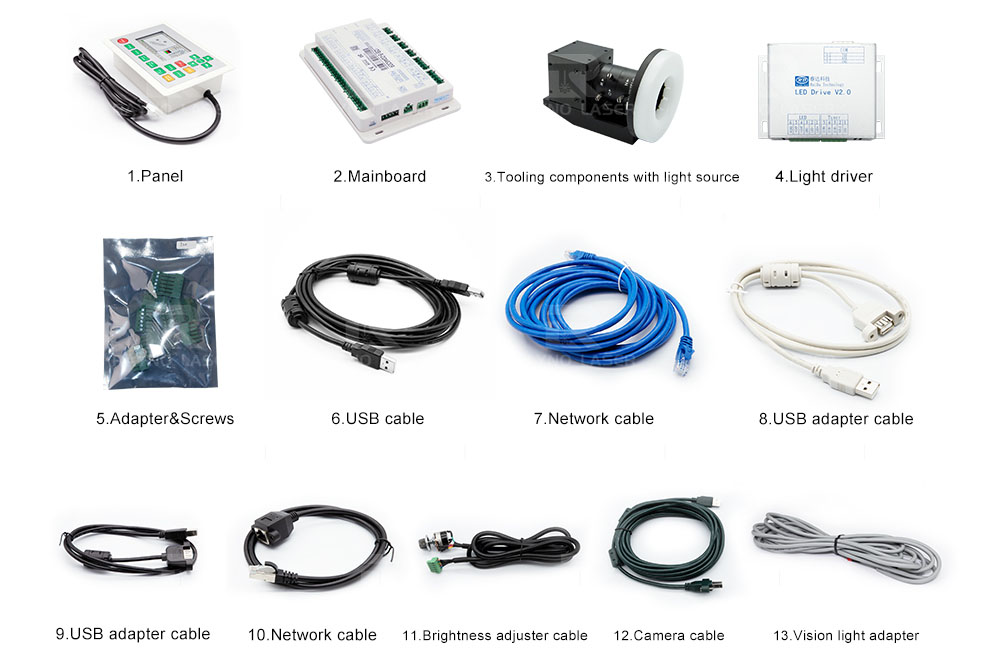

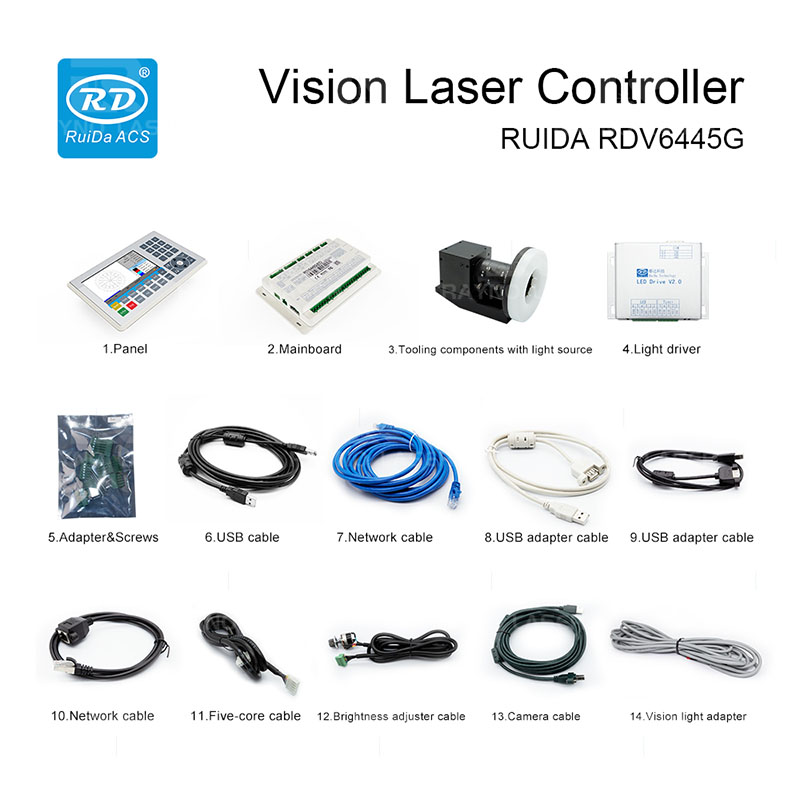

Packing List

RUIDA RDV6445G Vision Laser Controller

RUIDA RDV6442G Vision Laser Controller

Certificates
