High-precision Co2 laser cutter with 4K camera, intuitive control system, and eco-friendly design for efficient, refined creations.
Used for laser cutting, engraving and punching processing of cloth, leather, acrylic, plastic, rubber, ceramic tiles, wood products, bamboo products, wool, paper, ceramics and other non-metallic materials.

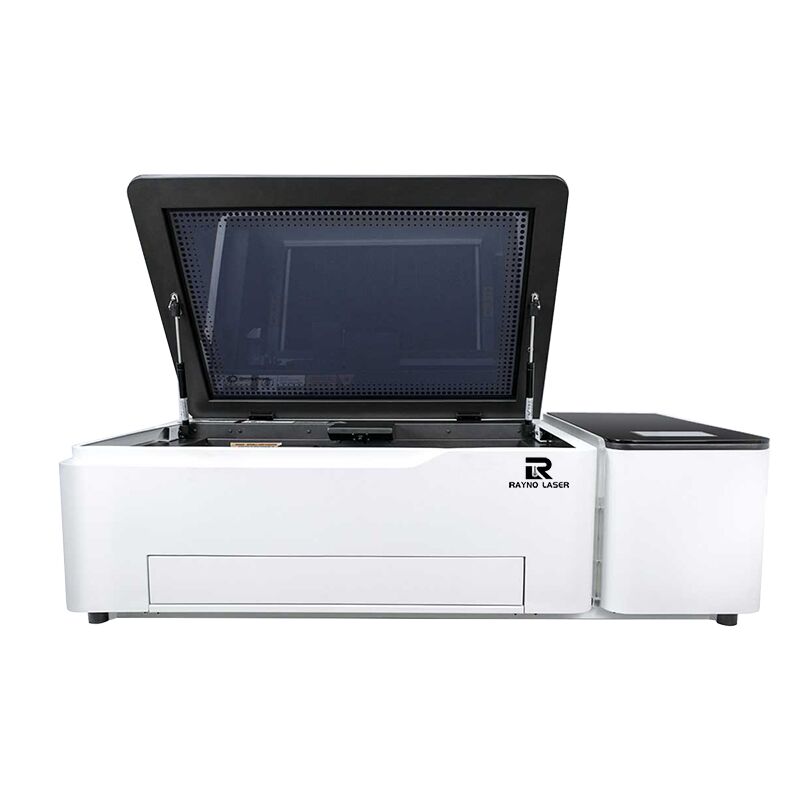

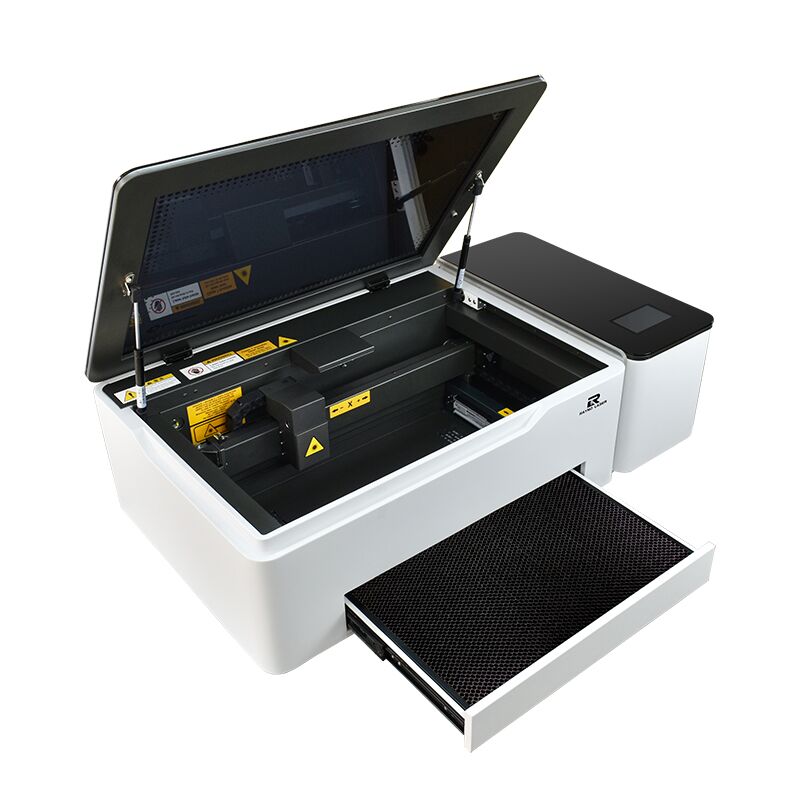

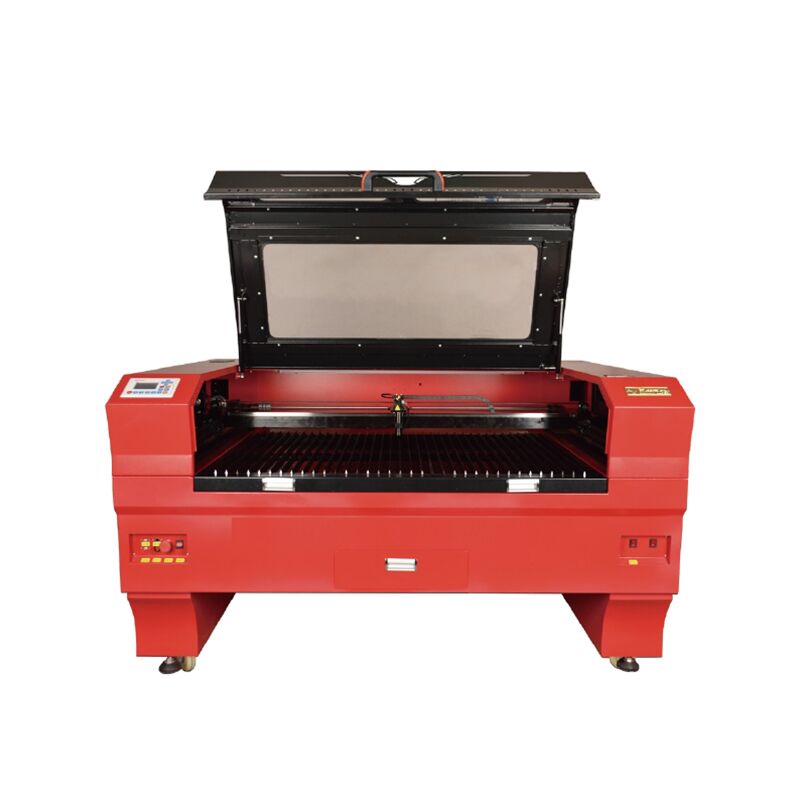

Available in desktop and vertical styles with different appearances for different working situation.
High-precision and efficient cutting and engraving
Rayno LaserCo2 laser power is 1064nm wavelength, power from 55W to 300W. The maximum working speed can reach 600mm/s, the laser beam positioning accuracy is 0.025mm red dot positioning, and the maximum cutting thickness can reach 40mm (acrylic), making your laser creation more refined and efficient.
4K Ultra HD CCD Camera
The panoramic 4K 16MP ultra-high definition camera is used for image pattern extraction, position sculpting, and can be used as a monitor to review the entire work process. Practicality and creativity rolled into one.
Powerful and easy-to-use authoring system
The machine adopts Ruida control system, 5-inch operation screen and powerful creative software, compatible with Ps, Ai, CorelDRAW, AutoCAD and Solidworks etc. You can upload JPG, DXF, AI, DST, PNG, BMP, TIF or SVG formats for design creation. All of this work can be done on your phone, too. With the APP version of LightMaker, you can design and operate your laser works more easily and innovatively.
Environmentally friendly and cost-effective
The machine itself is equipped with a purification system that can effectively generate dust. The filter, activated carbon and UV ozone multiple smoke filtration system works more efficiently, cleaner and more environmentally friendly.
Rugged laser head assembly
Fully enclosed and semi-open optional laser head designs provide stable operation with a laser life of more than 9,000 hours. The auto-focus laser head is equipped with a laser lift stroke of 30mm to achieve high-precision cutting and engraving.
It is suitable for cutting and processing of various non-metal products such as kitchenware and sanitary ware, advertising signs, lighting hardware, electrical cabinets and auto parts, mechanical equipment, electrical equipment, precision parts and other industries.
Laser Type | Sealed CO2 Glass Tube, CO2 RF Metal Tube |
---|---|
Laser Power | 60W, 100W, 150W, 200W, 300W |
Work Area | 500*300mm, 600*400mm, 900*600mm, 1300*900mm, 1600*1000mm |
Resetting Position Accuracy | ±0.1mm, ±0.025mm |
Working Power Supply | 110V, 50/60Hz, 220V,50/60Hz |
Control System | RUIDA CO2 Controller |
Support Softwares | Ps, Ai, CorelDRAW, AutoCAD and Solidworks etc. |
