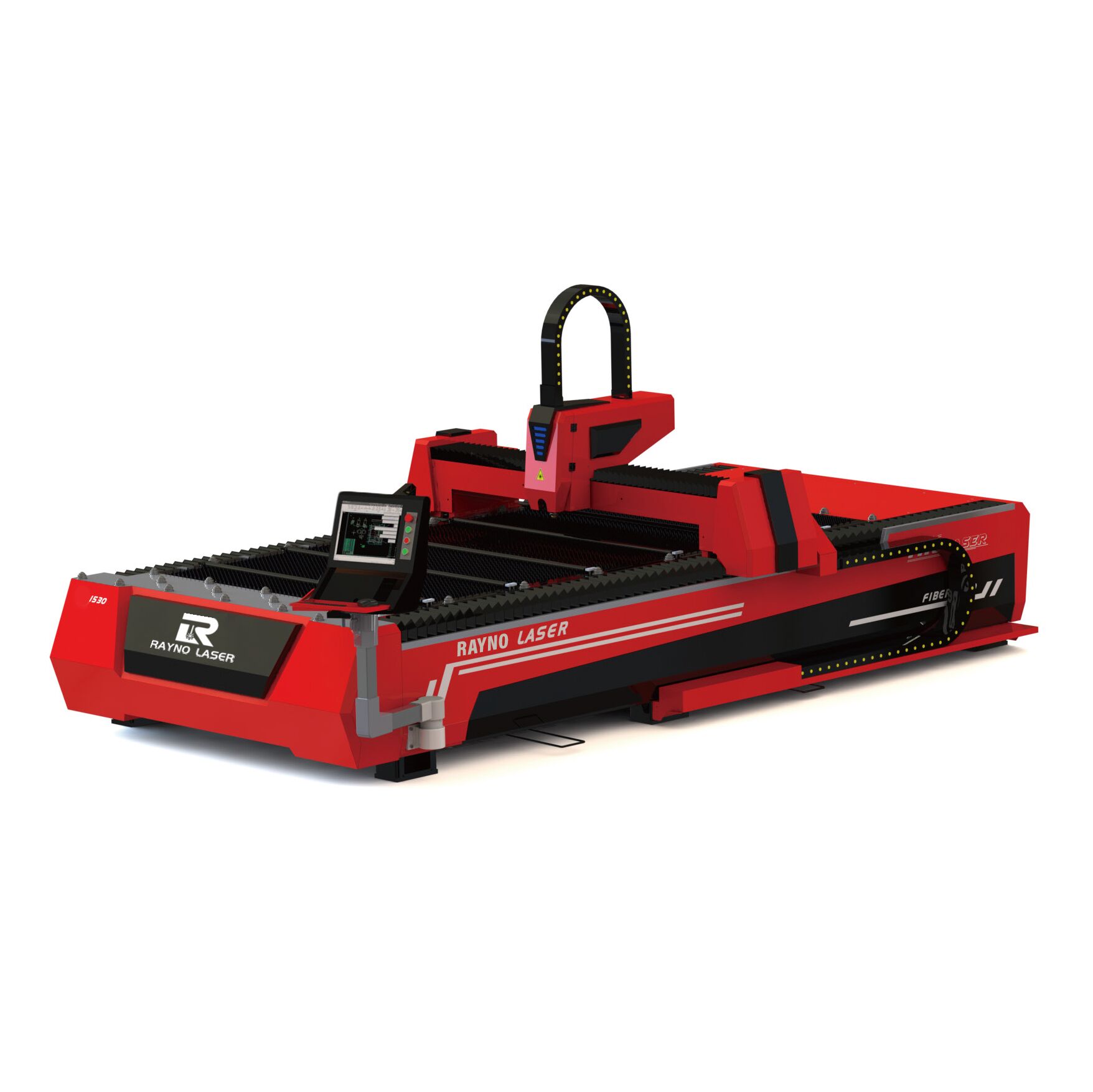

The standard machine adopted high-performance gear reducer and well-known brands of high-precision racks, guide rails, and ball screws, making cutting more accurate, more stable, and an excellent mature model.
 |
Taiwan YYC linear guide and Japanese SMG rack ensure durability and high precision for long-term processing. |
| Equipped with Japanese Shimpo reducer or an Italian Motorvario reducer to ensure high speed and high precision. The Z-axis is driven by a high-precision ball screw. |  |
 |
Yaskawa servo motor or FUJI servo motor |

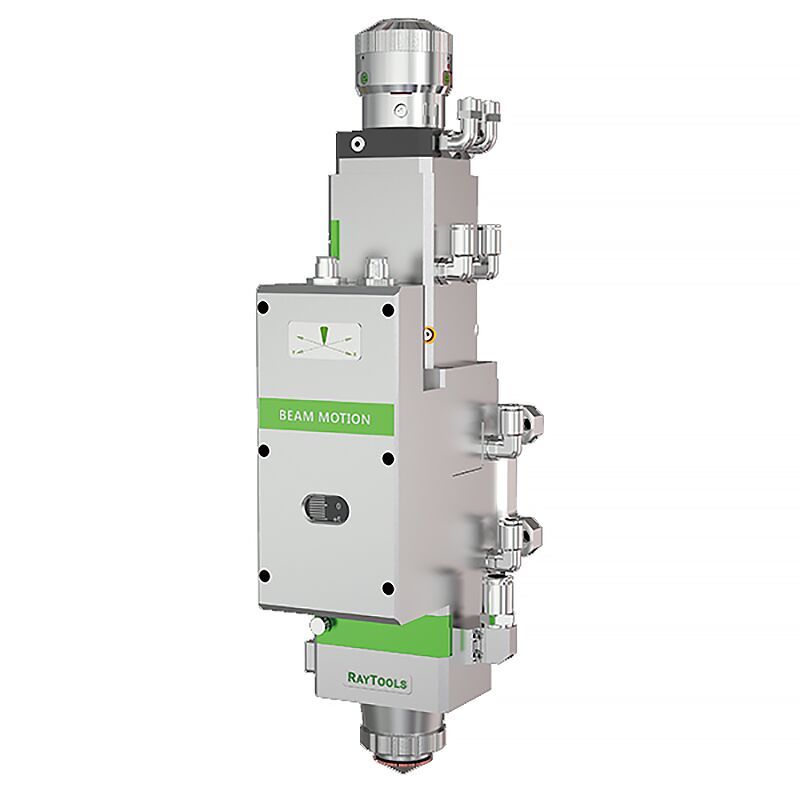

| Raytools Cutting Head/BOCI Cutting Head |  |

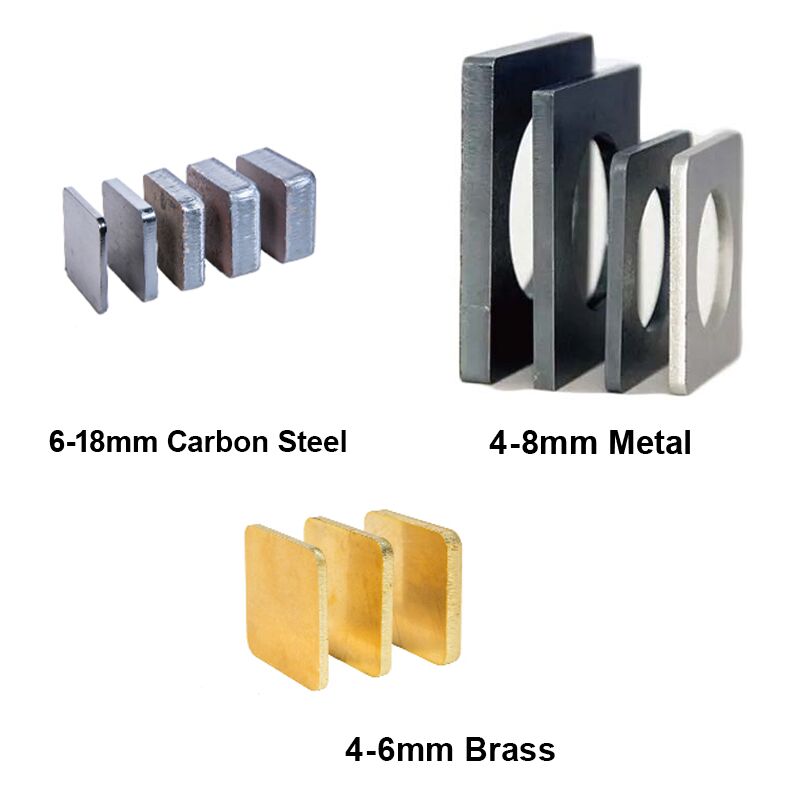

Widely used for cutting thick stainless steel, carbon steel, manganese steel, spring steel, titanium alloy, galvanized plate, aluminum plate, brass, copper and other metal plates.

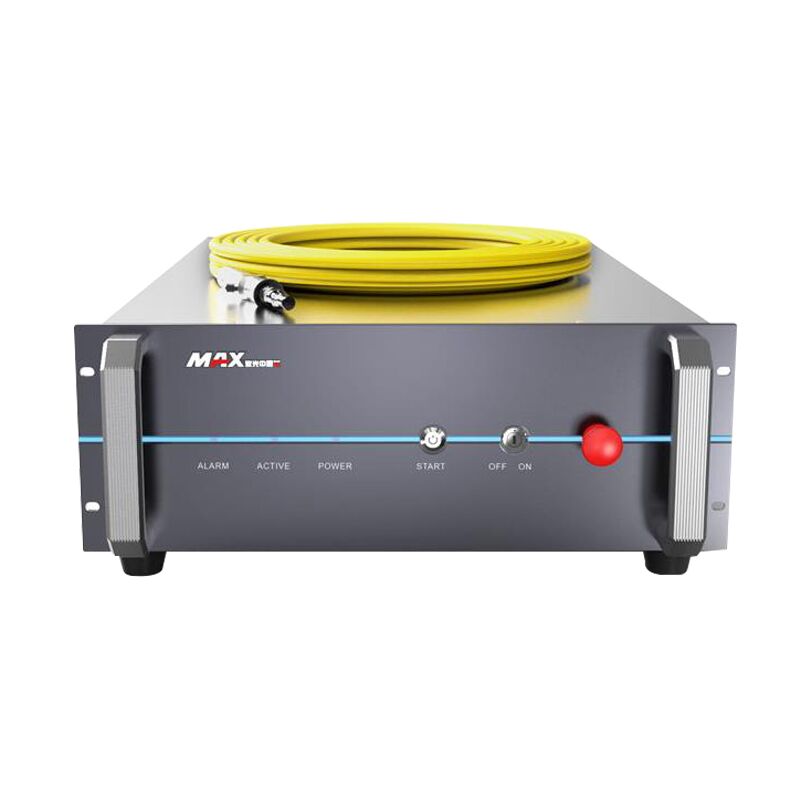

| Laser Power | 1500W, 2000W, 3000W, 6000W, 8000W, 10000W, 12000W, 40000W |
|---|---|
| Machine working area | 1500×3000mm, 1500×4000mm, 2000×4000mm, 1500×6000mm, 2000×6000mm |
| Resetting positioning accuracy | ±0.02mm |
| Working speed | 100m/min |
| X/Y Axis Position Accuracy | ±0.03mm/1000mm |
Get additional product information or technical support. Our team is always available to provide you with the necessary guidance and solutions.
