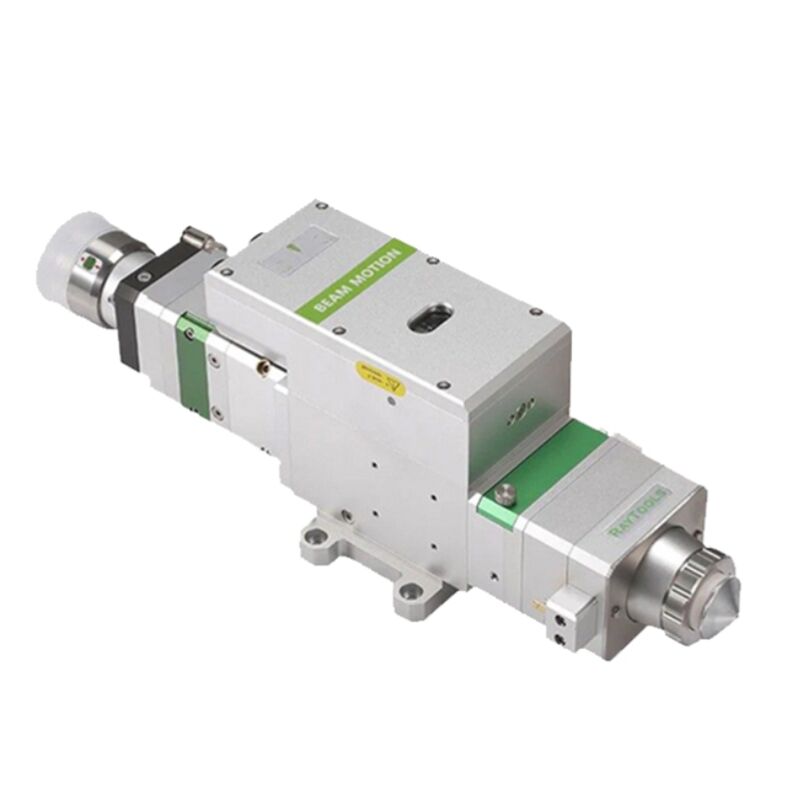

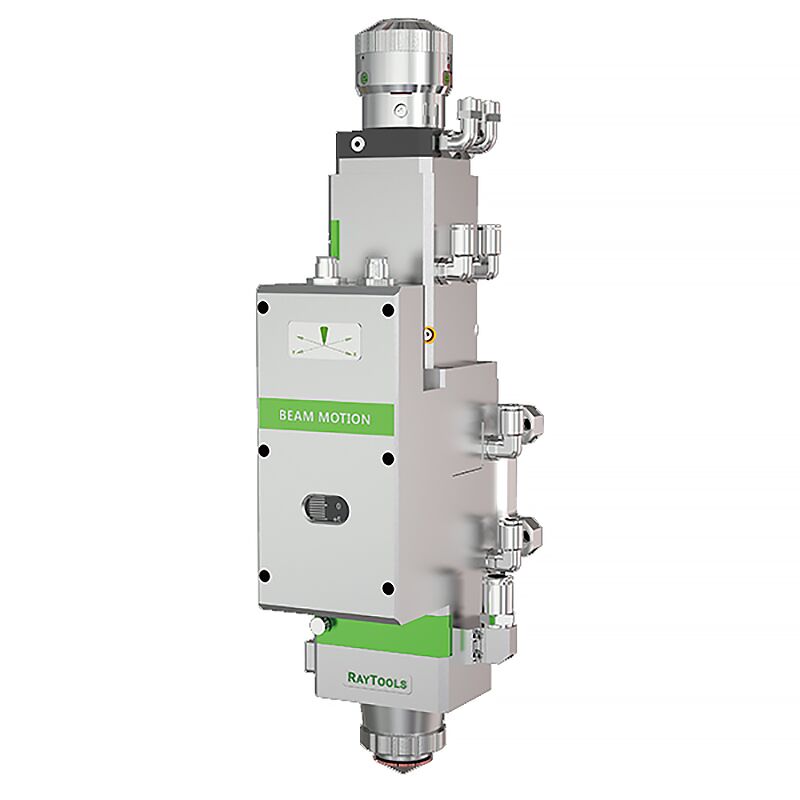

Laser Head Raytools BM110 Fiber Laser Cutting Head

  • Raytools BM110 is widely used in low to medium power laser cutting machine.
  • It is auto focus, support 2D or 3D cutting
  • The maximum acceleration of the focusing lens drive is 10m/s2, and the maximum speed is 6m/min.

FOB Reference Price: Get Latest Price

PRODUCT DESCRIPTION

BM110 is suitable for laser power from 1kw up to  3.3kW. This laser head is equipped with a variety of optical fiber interfaces such as QBH, QD, and G5, and can be adapted to various mainstream lasers, such as Maxphotoincs, Raycus, IPG, BWT etc.. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

Laser Cutting
The fiber laser cutting machine cutting machine cut the metal plate. The hi-technology sheet metal manufacturing process by laser cutting machine.

Raytools BM110 Main Features

1. Excellent design
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency

2.Multiple protective lenses
Collimation adds protective lenses to effectively protect the collimation lenses

3.Auto focus
Automatic focusing, reducing human intervention, automatic focusing range -12~+10mm, focusing accuracy 0.05mm

4. High adaptability
Equipped with multiple fiber interfaces such as QBH and QD, which can be adapted to various mainstream lasers

5. Drawer mirror holder
Protective lenses are quick and easy to replace

Size

BM110-Size

TECHNICAL PARAMETERS

Additional information

Cutting Mode

2D, 3D

Focusing Length

F125mm, F150mm, F200mm

Auto focus range

-12mm ~ +10mm

Auto focus speed

≤170mm/s

Auto focus acceleration

≤10m/s²

Accuracy

0.05mm

Numerical aperture

0.28

Nozzle specifications

single layer, double layer, non-standard

Nozzle hole diameter support

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

Auxiliary gas pressure

≤30bar

Weight

5kg

VIDEO
SAMPLE DISPALY
Laser cutting samples Laser cutting sample
