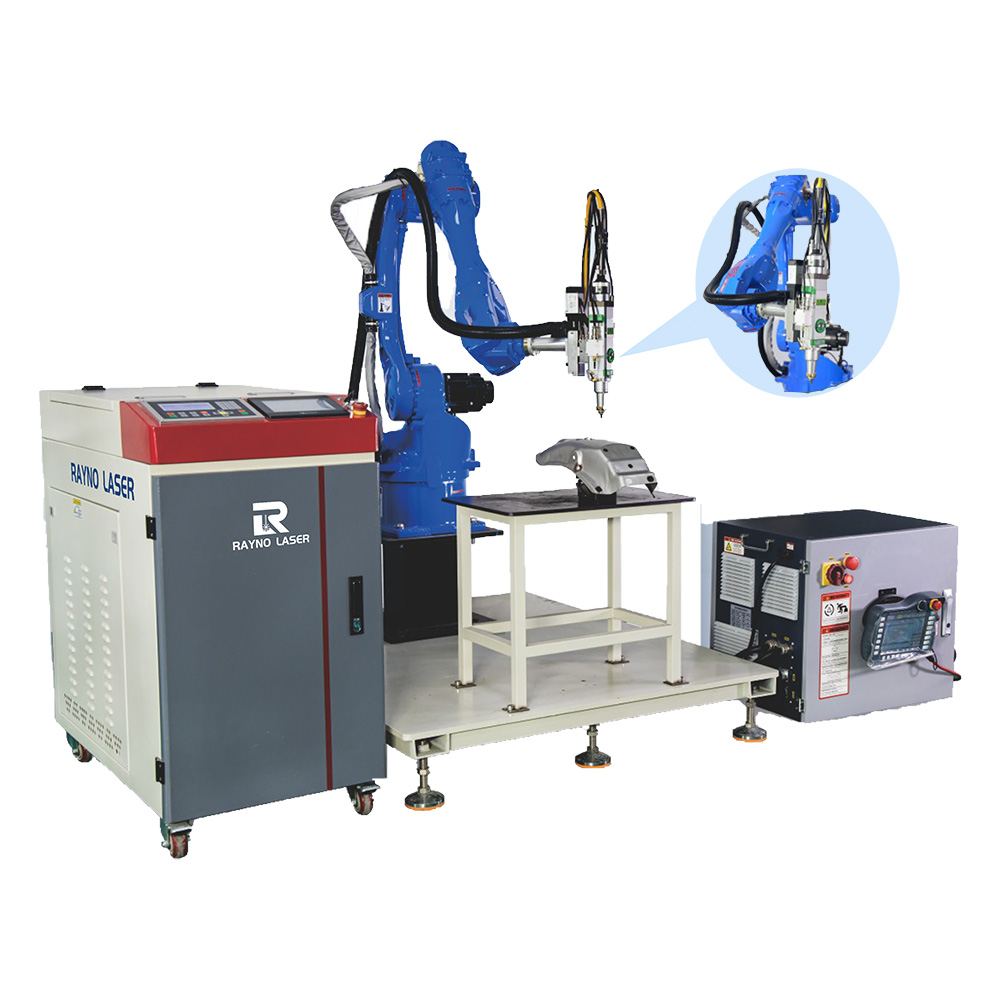

The RN-RC Series Laser Robot for Metal Cutting delivers top-tier precision and efficiency. Featuring a high-performance fiber laser with 24-hour continuous operation, it offers versatile cutting angles, customizable robotic arms, and high-precision servo motors for accurate, quick responses. The energy-efficient system intelligently manages power, and robust after-sales support includes free technical training and lifelong maintenance, ensuring seamless, high-quality metal cutting for diverse industrial applications.
RN-RC Series Laser Robot for Metal Cutting – a high-performance, durable, and efficient solution designed to meet the cutting needs of various industries. Built on years of manufacturing experience, this cutting-edge system combines advanced fiber laser technology with precision robotic automation, delivering unparalleled performance for industrial applications. Let’s dive into what makes the RN-RC Series a top choice for businesses seeking excellence in metal cutting.

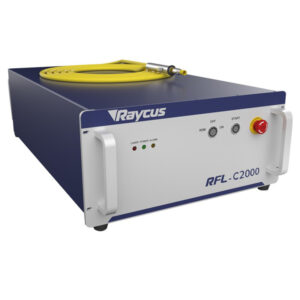

At the heart of the RN-RC Series is a high-performance fiber laser, selected from top-tier brands, known for its long lifespan and superior electro-optical conversion rate. This technology ensures that the laser can operate continuously for 24 hours without fatigue, making it ideal for demanding industrial environments. The long maintenance-free cycle means less downtime and more productivity, helping you meet tight project deadlines with ease.
Our direct factory supply model ensures that you receive the highest quality laser cutting head at a competitive price. Supports customized brand: Raytools, BOCI, WSX or others
Every industry has unique requirements, and the RN-RC Series laser robot is designed to meet them with flexible customization options. We equip the machine with first-class domestic brand manipulators, featuring a user-friendly design that allows for easy installation and operation. Paired with a high-precision servo motor, the system delivers fast and accurate response times, ensuring smooth, efficient operations at every stage of your production process. If you have specific needs, we offer customizable options to tailor the system’s features to your exact specifications.
The RN-RC Series is not just powerful – it’s smart too. The control cabinet integrates advanced laser cutting technology, which intelligently adjusts operations as soon as the system starts. Energy provided by the power supply is highly converted into laser energy, resulting in significant energy savings. This makes the RN-RC Series an eco-friendly and cost-efficient choice for businesses looking to cut both material and operational costs.
We understand that investing in new technology can come with challenges, and that’s why we offer fast and worry-free after-sales service. Our professional engineering team is always on standby to provide technical support and assistance. With free laser-related technical training and lifelong maintenance, we ensure that you get the most out of your equipment for years to come.
| Model | RN-RC Series |
|---|---|
| Laser Wavelength | 1070±10 nm |
| Working Mode | Continuous |
| Recommended Cutting Thickness | Stainless Steel/Carbon Steel: 0.5-8mm |
| Repeat Positioning Accuracy | ±0.05mm |
| Aiming Positioning Method | Red Light Indication |
| Power Consumption | 16-20KW |
| Working Voltage | AC220V/380V 50-60Hz |
| Optional Power | 1000W-4000W |
| Robotic Arm Length | 1.6m, 1.7m, 2.0m (optional) |

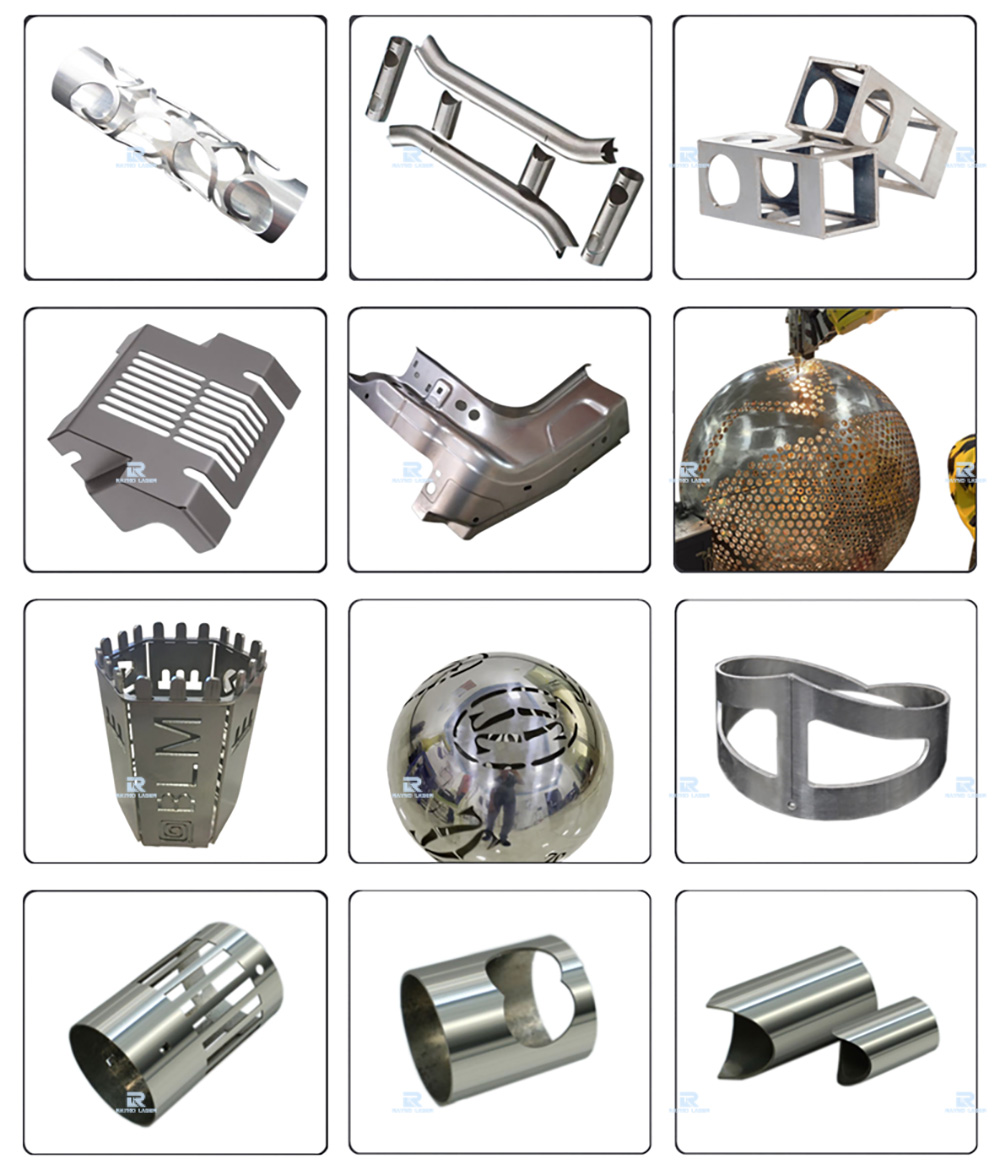

The RN-RC Series is a comprehensive solution for industries needing precise, reliable, and efficient metal cutting. Whether you’re cutting stainless steel, aluminum, alloys, carbon steel or other metal materials, this machine handles various thicknesses with accuracy, saving you time and reducing material waste. Its high-powered yet energy-efficient design ensures continuous operation without breaking the bank.
| Model | RN-RCB25 | RN-RCB20 | RN-RCB16 | |
| Axis | 6 axis industrial robotic arm | |||
| Drive mode | AC servo | |||
| Reach | 1,617 mm | 1,813 mm | 2,013 mm | |
| Repeatability | ±0.05 mm | |||
| Payload | 25 kg | 20 kg | 16 kg | |
| Range of motion (maximum speed) | Axis 1 | -180° to+180° (204°/s) | ||
| Axis 2 | -99° to+156° (186°/s) | |||
| Axis 3 | -200° to+75° (183°/s) | |||
| Axis 4 | -180° to+180° (492°/s) | |||
| Axis 5 | -135° to+135° (450°/s) | |||
| Axis 6 | -360° to+360° (705°/s) | |||
| Operating temperature | 0°C to +40°C | |||
| Storage temperature | -10°C to +55*C | |||
| IP rating | IP65 (Wrist IP67) | |||
| Mounting method | Floor, Ceiling | |||
| Noise level | < 75 dB(A) | |||
| Weight | About 252 kg | About 256 kg | About 264 kg | |
| AIR | 8bar | |||
| Signal | 24 channels | |||
| Laser Power | 1000W/1500W/2000W/3000W, 4000W |
|---|---|
| Cooling Method | Water Cooling |
| Aiming and Positioning | Red Beam |
| Laser Head | Raytools, WSX, Precitec, Boci |
| Working Voltage | 220±20V,AC,PE,50/60Hz, 380V, 50/60Hz |
| Machine Weight | Robotic arm 260KG + Control cabinet 160KG |
