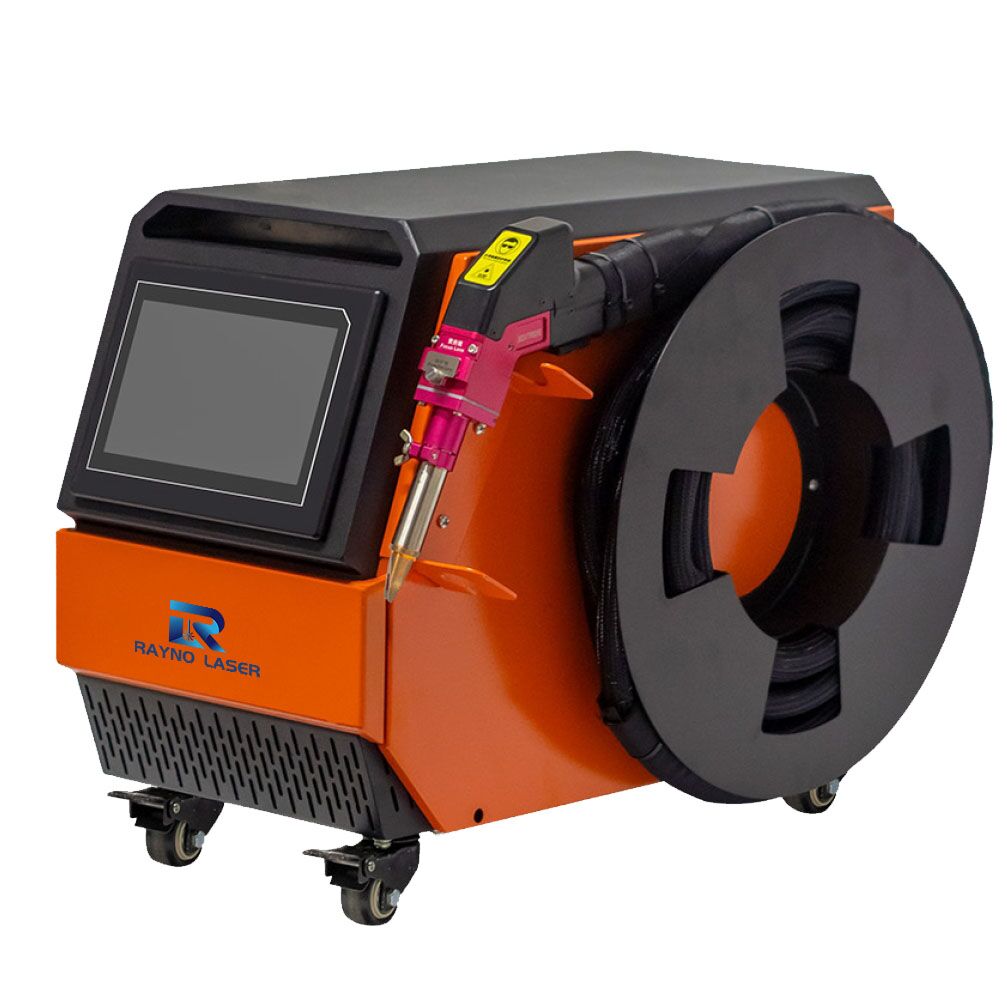

MINI 6-Times Rotating Protective Lens Air Cooling Handheld Laser Welder

The MINI 6-Times Rotating Protective Lens Air Cooling Handheld Laser Welder features an advanced air cooling system, a unique 6-times rotating protective lens for enhanced durability, and a portable design for easy mobility. Perfect for various metal welding applications with user-friendly operation and advanced safety features.

FOB Reference Price: Get Latest Price

PRODUCT DESCRIPTION

Overview

Introducing the MINI 6-Times Rotating Protective Lens Air Cooling Handheld Laser Welder by Rayno Laser. This small size handheld laser welding machine is designed to deliver exceptional performance and reliability for a variety of welding applications.

Key Features

  • Advanced Air Cooling System: The integrated air cooling mechanism ensures efficient heat dissipation, enhancing the machine’s longevity and performance.
  • 6-Times Rotating Protective Lens: This unique feature reduces the frequency of consumable replacements, minimizes gun body contamination, and boosts overall efficiency and machine lifespan.

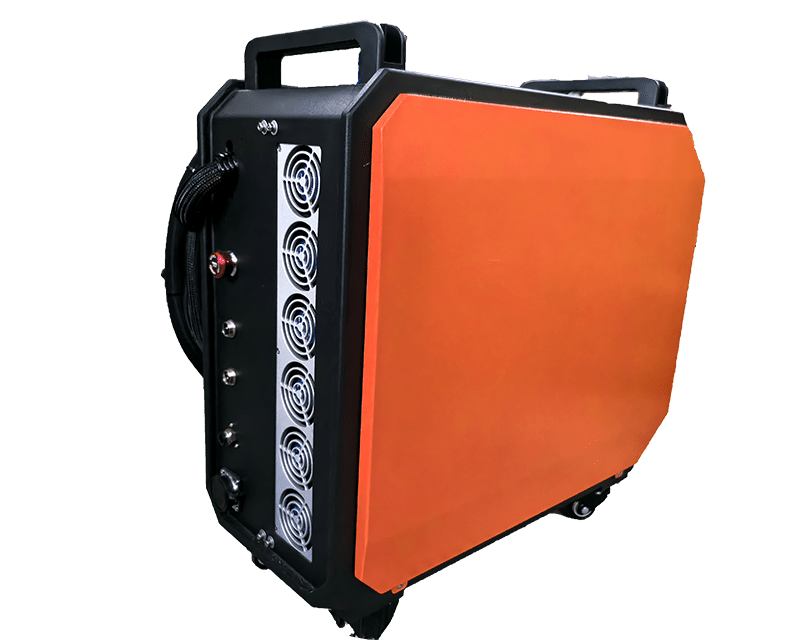

  • Portable Design: Lightweight and ergonomically designed for ease of use, making it ideal for mobile operations.6 rotating 1200W air cooling 2
  • High-Quality Laser Source: Equipped with BWT fiber laser source, ensuring high energy density and precise control.
  • Intelligent Control System: Features a 7-inch industrial-grade touch screen with a user-friendly interface, simplifying the welding process.

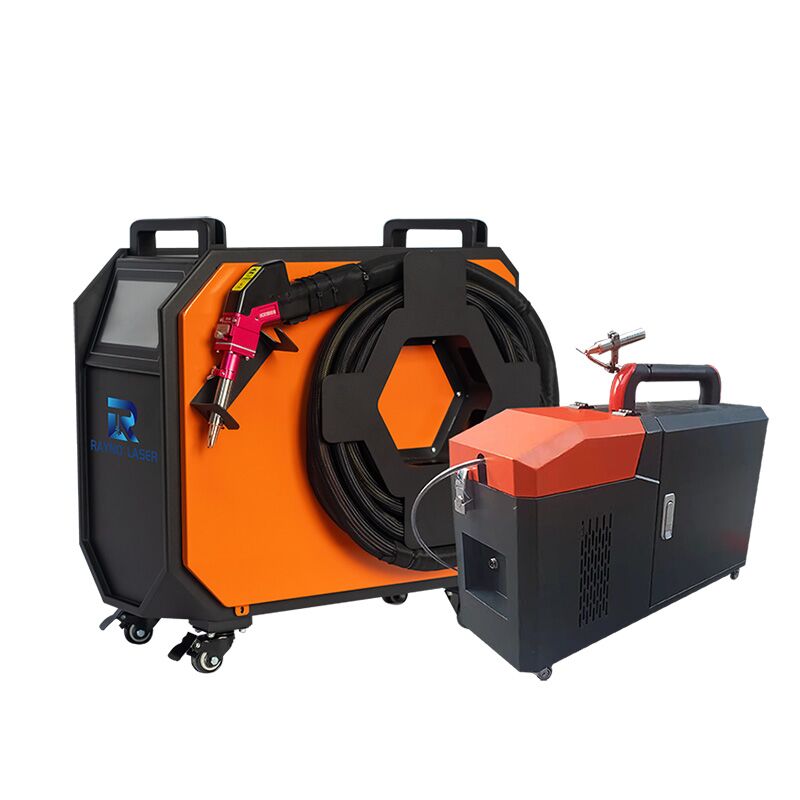

  • Versatile Welding Capabilities: Suitable for welding various metals including stainless steel, carbon steel, galvanized sheet, aluminum, and brass.6 rotating 1200W air cooling 1

Specifications

Parameter RL-AHW800 RL-AHW1200
Output Power 800W 1200W
Cooling System Air cooling
Out put laser power adjust range 1-100%
Output LaserWavelength 1080 士 10 nm
Welding Speed 0 – 120mm/s
Wire Feeder Speed 38 – 600mm/s
Swing mode Single motor
Control Interface 7-inch LED Touchscreen 7-inch LED Touchscreen
Fiber cable length 5m, or customized
Working Tem Manual
Working environment temperature range (℃) -10 ~40℃
Working environment humidity range ≤95%
Air pressure 0.1 – 1.0 Mpa
Machine Size 450*110*170 mm (LxWxH) 550*270*540 mm (LxWxH)
Main Machine Weight 25KG 38KG

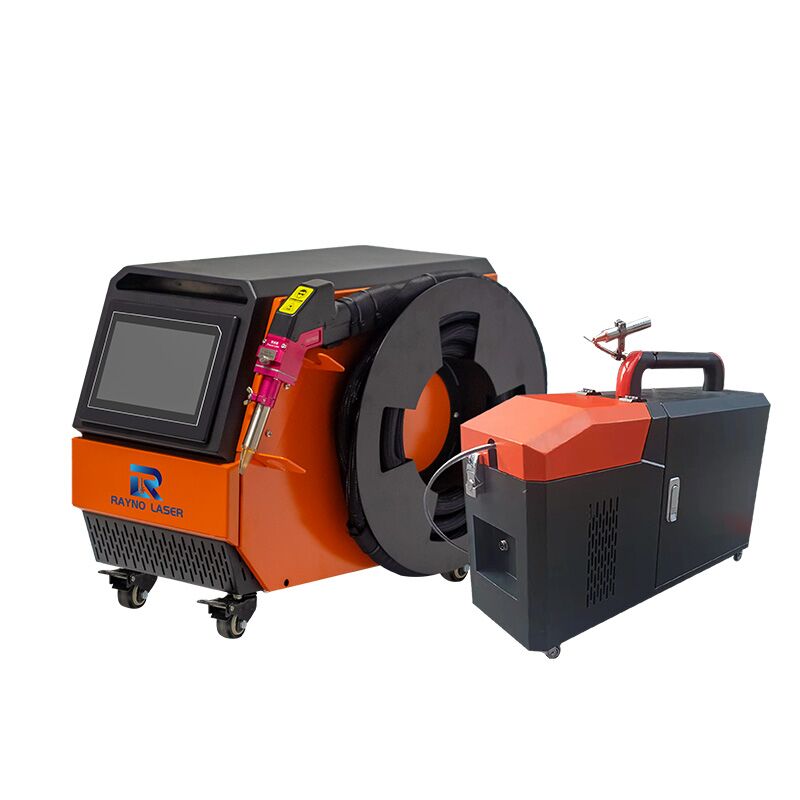

Wire Feeder

6 times laser wire feeder

Benefits

  • Efficiency and Precision: High energy density and accurate laser control result in deep fusion with minimal heat-affected zones, reducing deformation and improving welding speed.
  • Cost-Effective: Reduces the need for post-welding grinding and polishing, saving labor costs and improving production efficiency.
  • Enhanced Safety: Features multiple safety alarms and an automatic light-locking mechanism when the workpiece is removed.
  • Easy to Use: Simple operation suitable for new operators, requiring only 30 minutes of training.

Applications

Ideal for a wide range of welding applications including but not limited to:

  • Stainless Steel Welding: Up to 6.5 mm thickness
  • Carbon Steel Welding: Up to 6.5 mm thickness
  • Galvanized Sheet Welding: Up to 6.5 mm thickness
  • Aluminum Welding: Up to 5.5 mm thickness
  • Brass Welding: Up to 4.5 mm thickness

Packaging and Accessories

  • Standard Package Includes:
    • Laser welding head
    • Automatic wire feeder
    • Laser generator
    • Various welding nozzles and protective lenses
    • Laser protective glasses
    • Comprehensive toolkit and accessories

Support and Warranty

  • Warranty: 1-year warranty for the entire machine, 2 years for the laser source.
  • Training and Support: Free training at our factory, 24/7 online support via WhatsApp, Zoom, email, or phone. On-site support available if necessary.

Experience the future of welding with the MINI 6-Times Rotating Protective Lens Air Cooling Handheld Laser Welder, designed for efficiency, safety, and superior performance. Call us for more information or contact us at sales@raynolaser.com.

TECHNICAL PARAMETERS

Additional information

Model

RL-AHW1200, RL-AHW800

Laser Power

1000W, 1200W, 800W

Cooling Method

Air Cooling

Aiming and Positioning

Red Beam

Laser-wavelength

1080+10 nm

Laser Power Adjust Range

10 ~ 100%

Machine Size

450*110*170 mm, 550*270*540 mm

Working Voltage

220±20V,AC,PE,50/60Hz

VIDEO
SAMPLE DISPALY
Welding samples 4 in 1 gun Welding Samples
