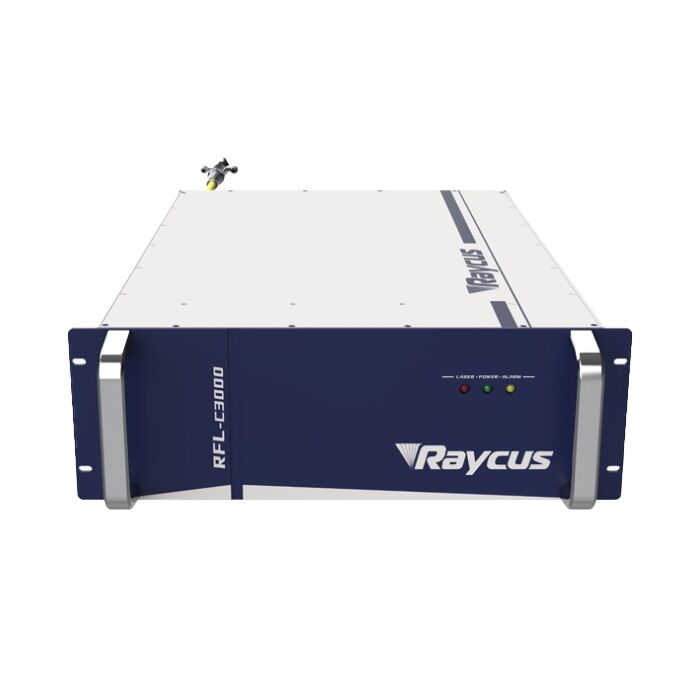

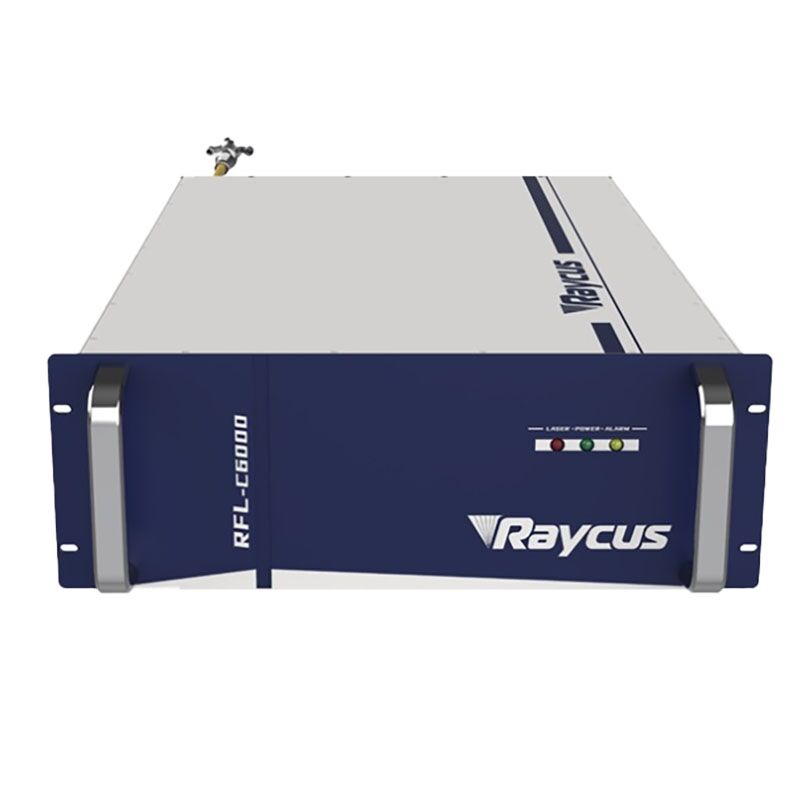

Raycus Fiber Laser 3000W 6000W Raycus Laser Source

Raycus 6000W Fiber Laser Source combines advanced technology, robust performance, and versatility, making it an indispensable tool for industrial and research applications. With its superior beam quality, adjustable power output, and reliable performance, this laser source provides exceptional value for manufacturers and researchers seeking to optimize their processes.

FOB Reference Price: Get Latest Price

PRODUCT DESCRIPTION

The Raycus 6000W Fiber Laser Source is a laser solution designed for industrial applications requiring high precision, efficiency, and reliability. This high-power laser source is ideal for tasks such as industrial cutting, welding, laser cleaning, 3D printing, and advanced laser research. Its cutting-edge design, robust performance, and versatile capabilities make it an excellent choice for demanding manufacturing and research environments.

Key Features of Raycus Laser Source

  • Superior Beam Quality: High beam parameter product (BPP) ensures excellent precision for a variety of applications.
  • Power Adjustability: Output power can be finely tuned between 10% and 100%, providing flexibility for different tasks.
  • High Efficiency: Features excellent electrical-to-optical conversion efficiency, reducing energy consumption.
  • Reliable and Stable: Offers long-term power stability of ±1.5%, ensuring consistent performance over extended use.
  • Maintenance-Free Operation: Built for durability with minimal maintenance requirements, ensuring cost efficiency.
  • Multi-Mode Control Options: Compatible with AD, RS-232, and Ethernet control methods for seamless integration into industrial systems.

Technical Specifications of Raycus fiber laser

Below is a detailed table of the Raycus 6000W Fiber Laser Source’s specifications:

Parameter Specification
Optical Characteristics
Output Fiber Core Diameter (μm) 50–75
Beam Quality BPP (mm × mrad) 2.7–3.1
Output Power (W) 6000
Central Wavelength (nm) 1075–1085
Power Adjustment Range (%) 10–100
Red Light Power (mW) 0.5–1
Output Fiber Cable Length (m) 20
Electrical Characteristics
Operating Voltage (VAC) Three-Phase 50/60Hz, 380 (±15%)

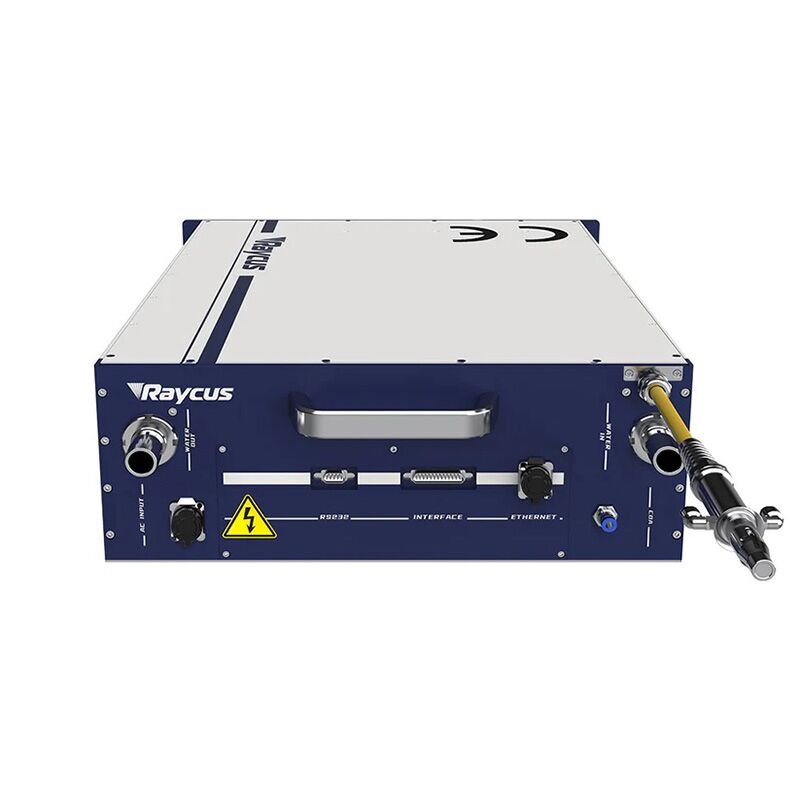

Control Methods AD/RS-232/Ethernet
Other Characteristics

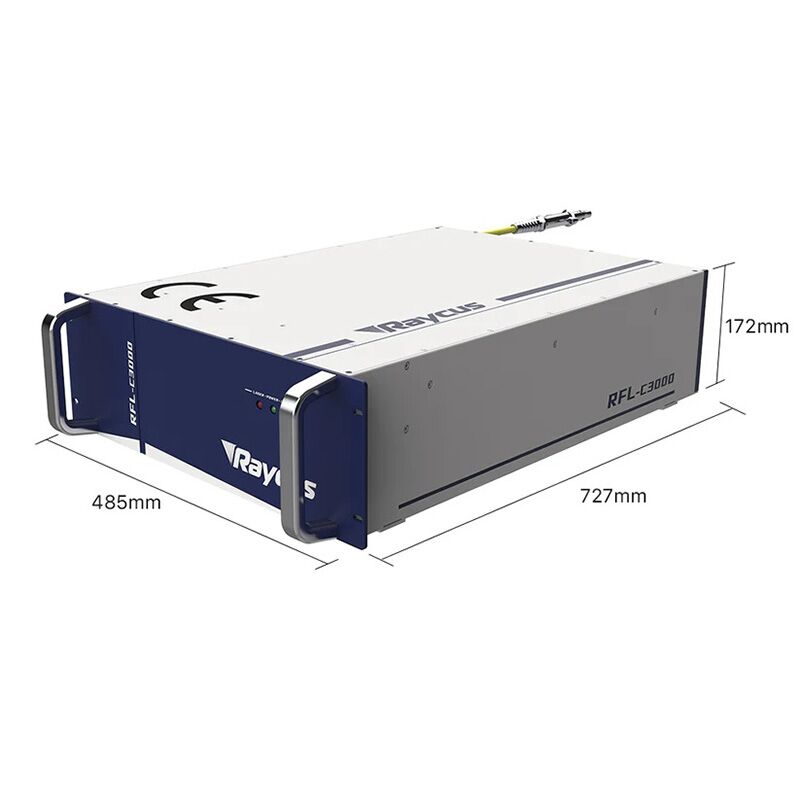

Dimensions W×D×H (mm) 455 × 802 × 168
Weight (kg) 70
Operating Temperature (℃) 10–40
Storage Temperature (℃) -10–60
Operating Humidity (%) 30–90

Applications

The Raycus 6000W Fiber Laser Source is a versatile and reliable solution for a wide range of industries and applications:

  • Industrial Cutting: High-power precision cutting of metals and other materials, ensuring clean and accurate results.
  • Welding: Strong and efficient welding of various components, suitable for both light and heavy industrial applications.
  • Laser Cleaning: Effective removal of rust, paint, and other contaminants from surfaces.
  • 3D Printing: Advanced applications in additive manufacturing for precise and high-quality builds.
  • Laser Research: A powerful tool for academic and industrial research in laser technologies.

Conclusion

The Raycus 6000W Fiber Laser Source combines advanced technology, robust performance, and versatility, making it an indispensable tool for industrial and research applications. With its superior beam quality, adjustable power output, and reliable performance, this laser source provides exceptional value for manufacturers and researchers seeking to optimize their processes.

TECHNICAL PARAMETERS

Additional information

Laser Type

CW fiber laser

Laser Power

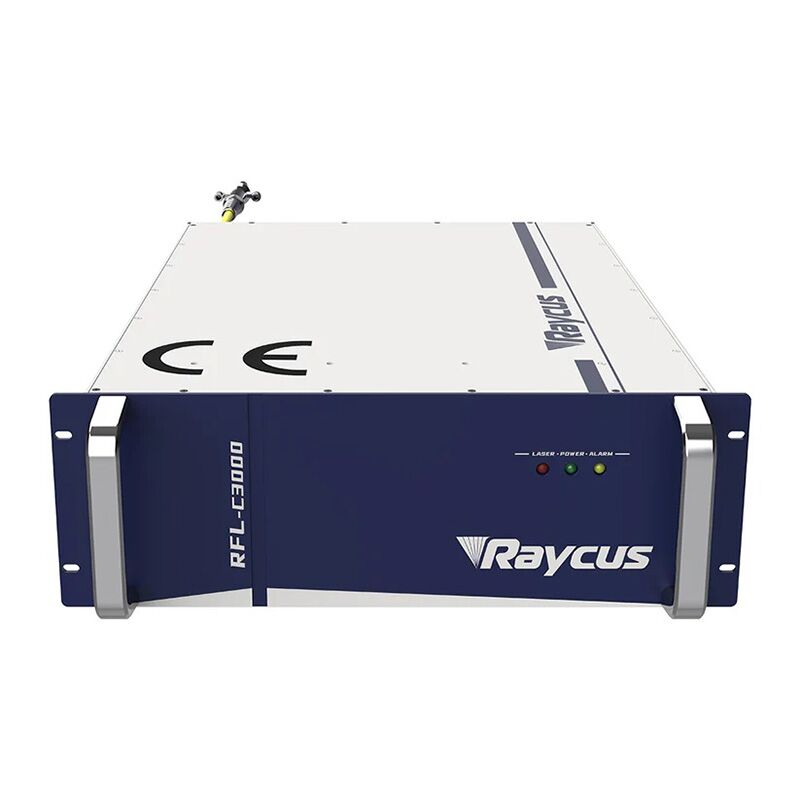

3000W, 6000W, 3000W CE, 6000W CE

Application

Used for laser cutting, cleaning, laser welding, laser cladding, laser brazing, laser surface heat treatment

VIDEO
SAMPLE DISPALY
Laser cutting sample
Laser cutting sample
laser welder sample
