In many industries, surface preparation quality directly determines the success of coating, welding, or bonding processes. Among the key parameters, surface roughness (Ra) plays a vital role in ensuring adhesion strength and corrosion resistance.
To verify the performance of our equipment, Rayno Laser conducted a detailed roughness test using our latest 6kW continuous-wave (CW) laser cleaning machine.
Test Overview
The test was designed to evaluate the surface roughness after laser cleaning on two common industrial metals: stainless steel and carbon steel. All tests were performed using Rayno’s 6 kW single-axis laser cleaning system, under stable process parameters and controlled laboratory conditions.
Equipment Used:
- Model: Rayno 6 kW CW Laser Cleaning Machine (Single-Axis Type)
- Laser Type: Continuous Wave Fiber Laser
- Test Materials: Stainless Steel 304 / Carbon Steel Q235

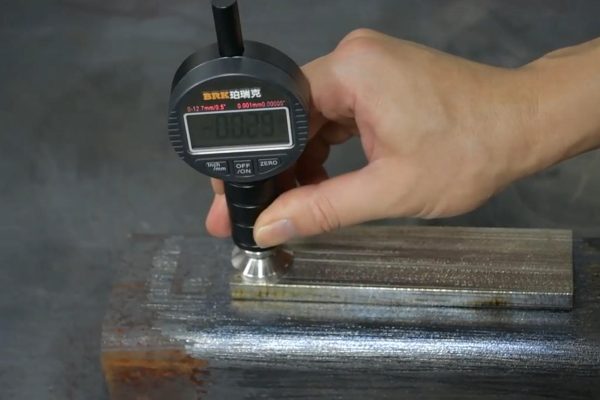

- Measurement Tool: Surface Roughness Tester (Ra)
- Reference Standards: ISO 8501-1 / NACE No. 2 / SSPC-SP 10 (Near-White Metal Blast Cleaning)
Test Results
| Material | Measured Surface Roughness (Ra) | Equivalent Standard |
|---|---|---|
| Stainless Steel | 20–40 μm | Comparable to SP 10 (Near-White Metal) finish |
| Carbon Steel | 70–120 μm | Comparable to SP 10 / Sa 2.5 heavy blast profile |
The results show that the laser-cleaned surfaces achieve a micro-roughness level suitable for coating and welding preparation, meeting industrial standards typically achieved by grit blasting.
The stainless steel surface remains smooth and bright with uniform texture, while carbon steel surfaces exhibit higher roughness ideal for paint adhesion or anti-corrosion coatings.
Why Surface Roughness Matters
Proper surface roughness ensures:
- Improved coating adhesion
- Reduced risk of peeling or delamination
- Better welding quality through clean and oxide-free surfaces
- Extended corrosion resistance in harsh environments
Traditional abrasive blasting achieves similar results, but laser cleaning provides a cleaner, safer, and more environmentally friendly process—with no consumables, no secondary waste, and precise control of roughness by adjusting laser power and scanning speed.
About the Rayno 6 kW Laser Cleaning Machine
The Rayno 6 kW CW Laser Cleaning System is designed for heavy-duty industrial applications such as paint stripping, rust removal, and weld preparation.
Featuring a single-axis scanning head for stable and efficient linear cleaning, it delivers consistent performance across large metal surfaces.
Key Features:
- High-power 6 kW continuous laser output
- Adjustable beam width and energy density
- Compatible with robotic integration or handheld operation
- Non-contact and residue-free surface treatment
- Capable of achieving SP 10-equivalent surface preparation results
Meeting Industrial Standards
Thanks to its proven surface performance, Rayno’s 6 kW laser cleaning machine meets the requirements of ISO 8501-1 and SSPC-SP 10 / NACE No. 2 standards for near-white metal cleaning—widely recognized in industries such as:
- Shipbuilding & Marine
- Oil & Gas Equipment
- Aerospace
- Automotive Manufacturing
- Coating & Surface Engineering
Learn More
Rayno Laser continues to optimize its cleaning technology for high-precision surface preparation.
If your process requires specific roughness control or SP 10-grade surface quality, our engineering team can help you develop customized solutions.
Contact us today to learn more about the Rayno 6 kW Laser Cleaning Machine and request a detailed test report.
